category:
Sensors
install_guide:
["https://www.braeburnonline.com/sites/braeburn/files/products/manuals/7500%20Installer.pdf"]
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/7500%20User%20Manual_0.pdf
manufacturer:
Braeburn
mpn:
7500
subcategory:
Thermostats
weight:
1.85 lbs.
Install Guide Product Overview

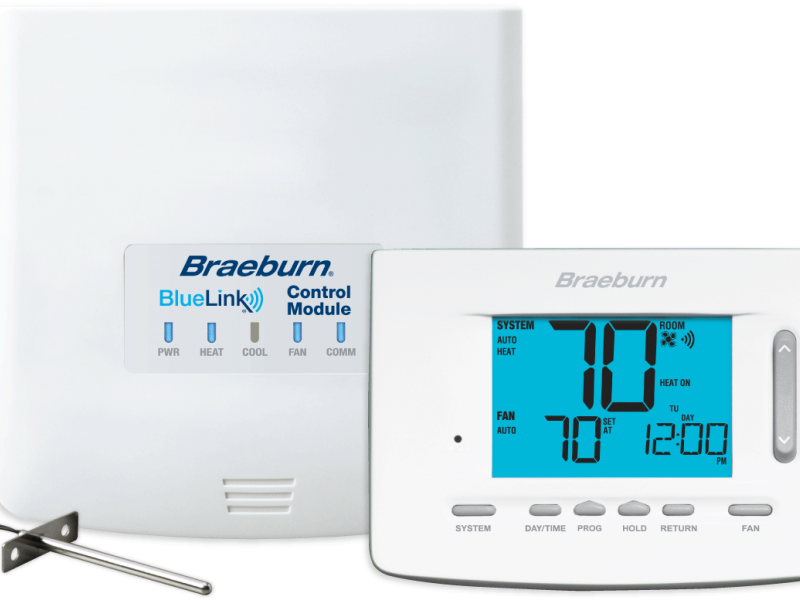

BlueLink Wireless Thermostat Kit 3H / 2C
Features- 7 Day, 5-2 Day or Non-Programmable
- Large 5 Sq. In. Backlit Display
- Auto or Manual Changeover
- Residential or Commercial Modes
- Battery Operated for Total Installation Flexibility
- Compatible with 2 or 3 Wire Hydronic Zone Systems
- Auxiliary Heat Fossil Fuel Option
- Programmable Fan Control
- R and C Terminals for Optional 24 Volt Operation
- Adjustable Temperature Limits
- Multi-Level Keypad Lockout
- Quick Reference Instruction Card
- Superior Wireless Range
- Battery Life Exceeds Virtually All Competitive Models
- Includes Return Air Sensor for Default Temperature Control Even if Batteries are Drained
- Connect up to 4 Optional Wireless Indoor Sensors for Remote Temperature Sensing*
- Optional Wireless Outdoor Sensing for Outdoor Temperature Display or Balance Point Control*
- Optional Wireless Humidity Plenum Sensor for Whole-House Humidification Control*
- Affordable Solution for Virtually Any Thermostat Application
Additional Information
Thermostat Dimensions 3.8” x 5.5” x 1.42”
Control Module Dimensions 6.0” x 6.0” x 1.25”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 5 amp total maximum load (all terminals)
DC Power 3.0 Volts DC (2 “AA” Alkaline batteries included)
Optional AC Power 18-30 Volt AC
Compatibility Heat pump systems up to 3 heat/2 cool, Conventional systems up to 2 heat/2 cool
Control Range 45° to 90° F (7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential 1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C), 2nd and 3rd Stage - 1°, 2°, 3°, 4°, 5°, or 6° F, (.5°, 1°, 1.5°, 2°, 2.5°, or 3° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity Control Module S1, S2, P1, P2, L, C, Y2, Y1, O/B/V3, W2/AUX,
Terminations W1/E, Rh, Rc, G
