category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
1930-61-08-08
subcategory:
Fittings/Hoses/Adapters
type:
Flange Fittings
Product Description

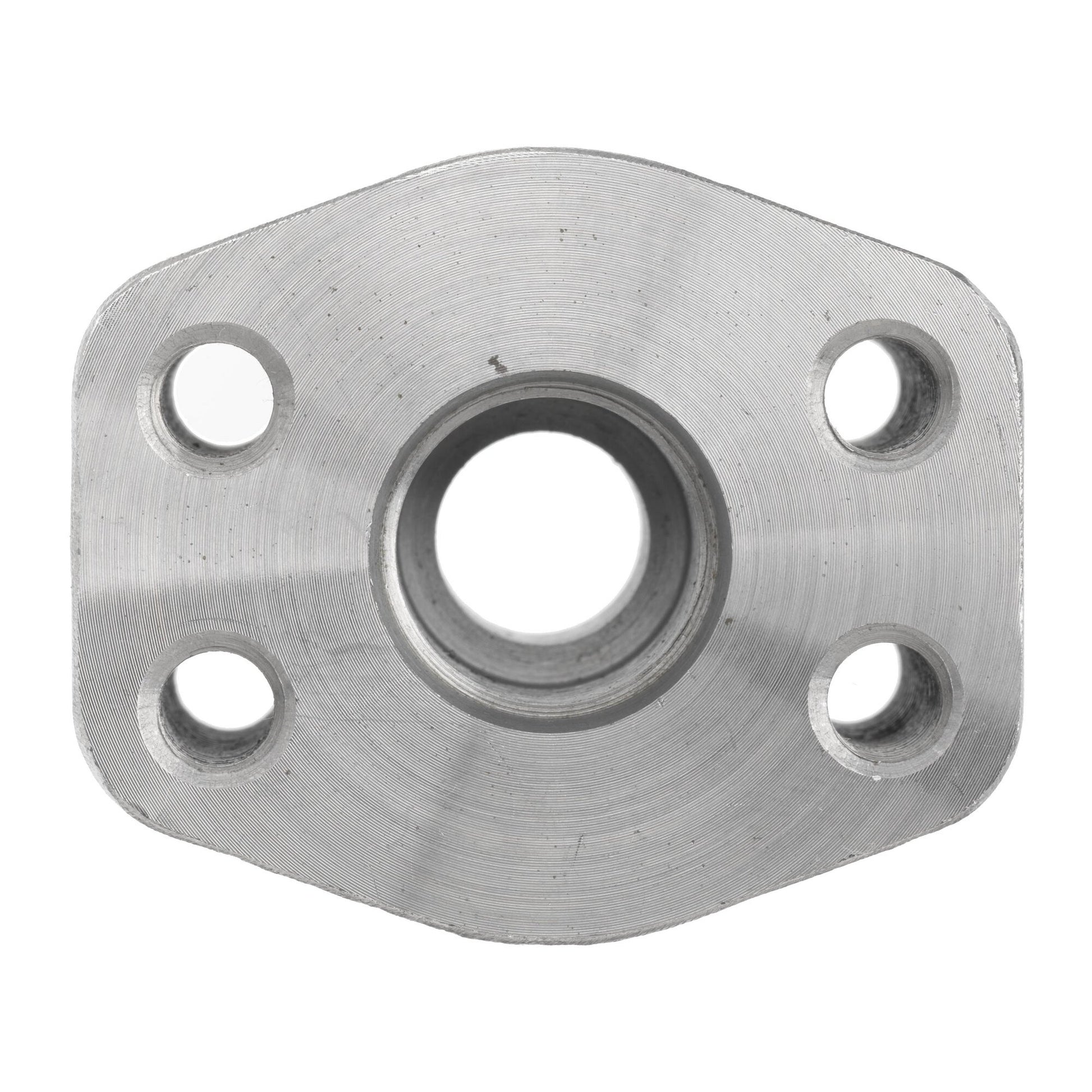

Brennan - 1930-61-08-08 SAE Port Block – Code 61 (Flat Face)

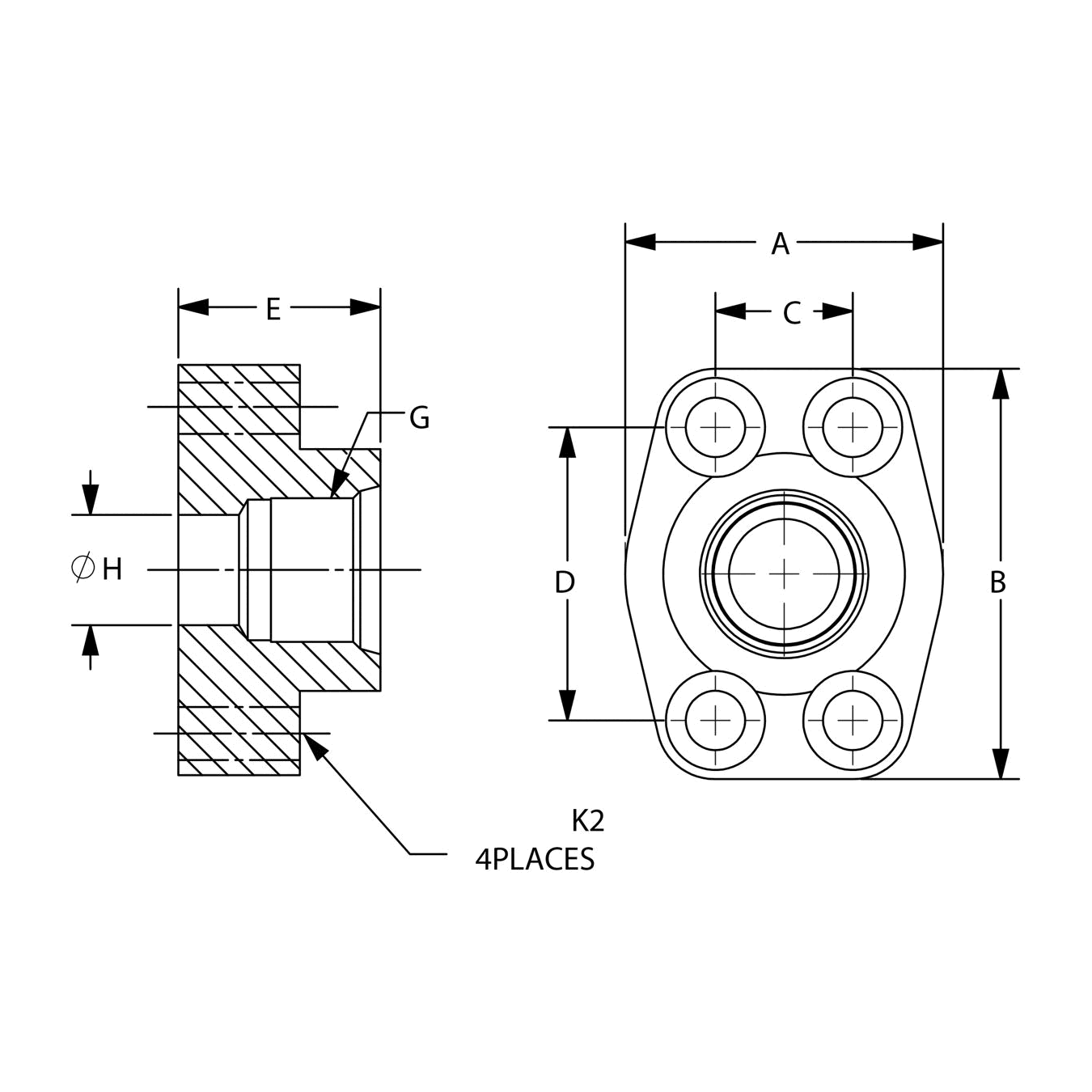

Additional Information
PIPE SIZE1/2
FLANGE SIZE1/2
A1.820
B2.17
C0.688
D1.500
E1.25
G THREAD3/4-16
H0.50
J MIN1.000
J MAX1.005
K1 DRILL0.344
K2 THD.5/16-18
MATERIALSTEEL
ConnectionsFlange
ShapeOther
