category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6803-06-06-04-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

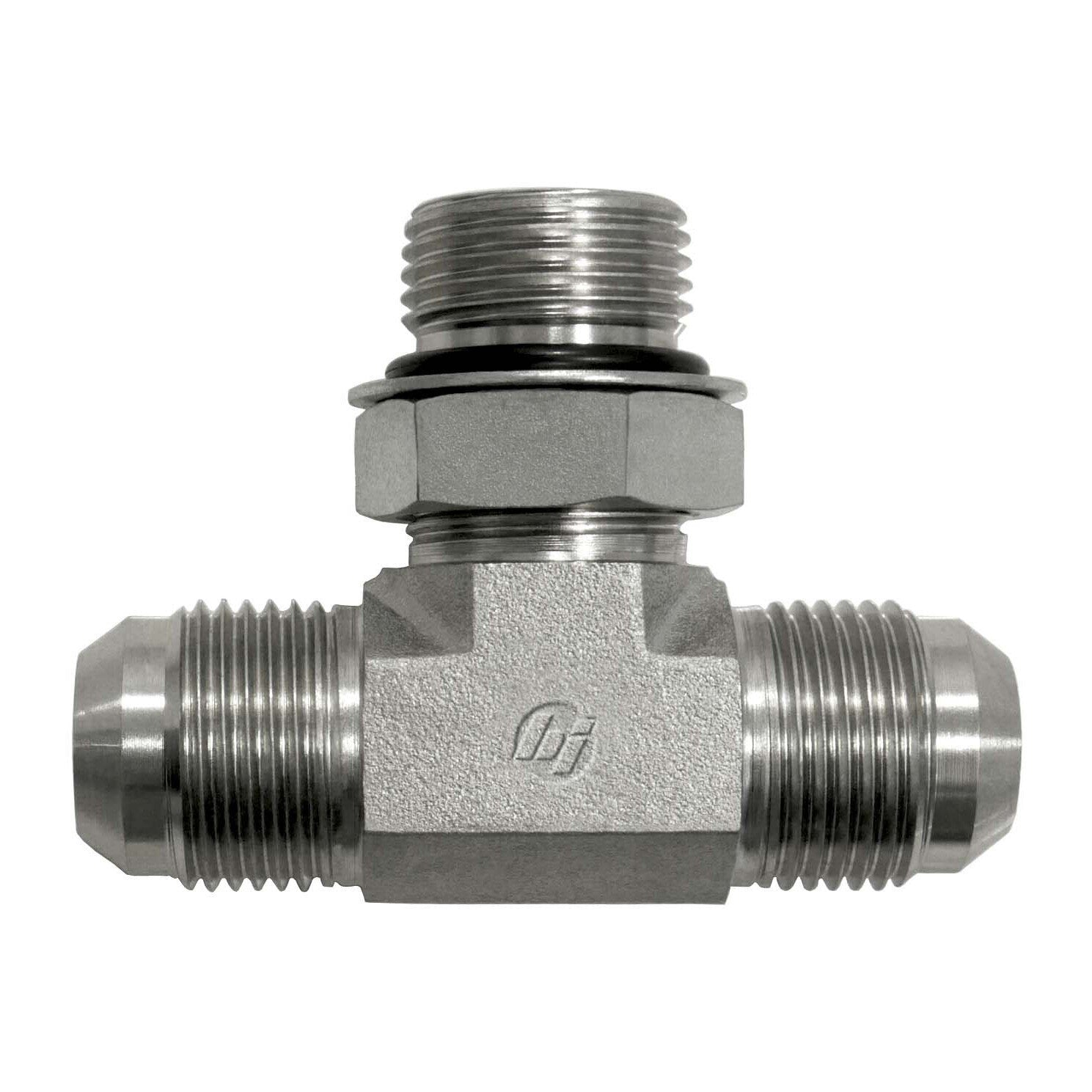

Brennan - 6803-06-06-04-NWO-FG MJ-MJ-MAORB Branch Tee
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE9/16-18
THREAD B2 DRILL IN0.297
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE7/16-20
THREAD 3 DRILL IN0.172
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.562
C HEX 1 IN0.563
OVERALL LENGTH L IN1.190
CENTERLINE LENGTH M IN1.060
CENTERLINE LENGTH M2 IN1.060
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.1437
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC, ORB
ShapeTee
