category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6803-16-12-16-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

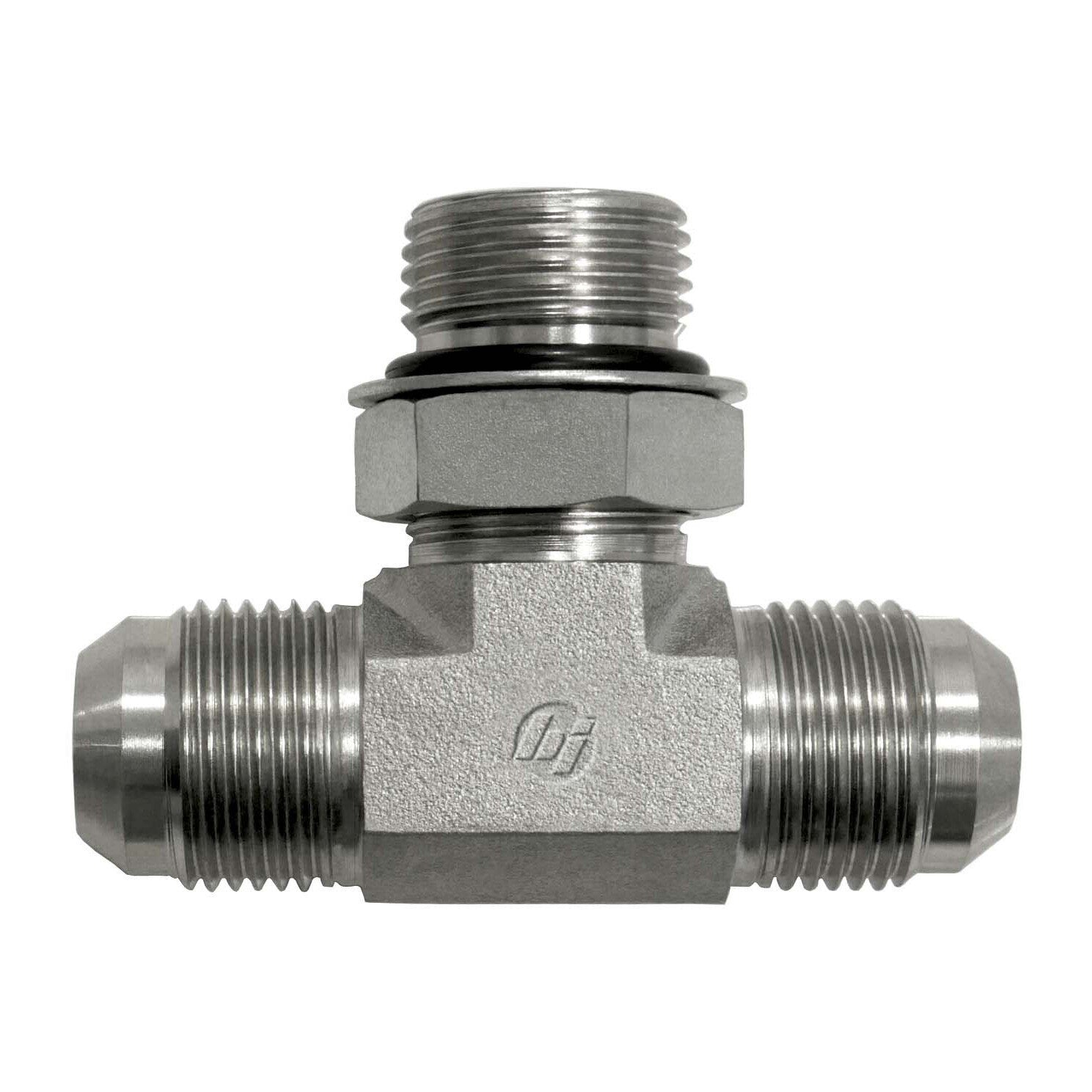

Brennan - 6803-16-12-16-NWO-FG MJ-MJ-MAORB Branch Tee
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE1-1/16-12
THREAD B2 DRILL IN0.609
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE1-5/16-12
THREAD 3 DRILL IN0.844
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.312
C HEX 1 IN1.500
OVERALL LENGTH L IN2.050
CENTERLINE LENGTH M IN1.810
CENTERLINE LENGTH M2 IN1.760
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS1
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC, ORB
ShapeTee
