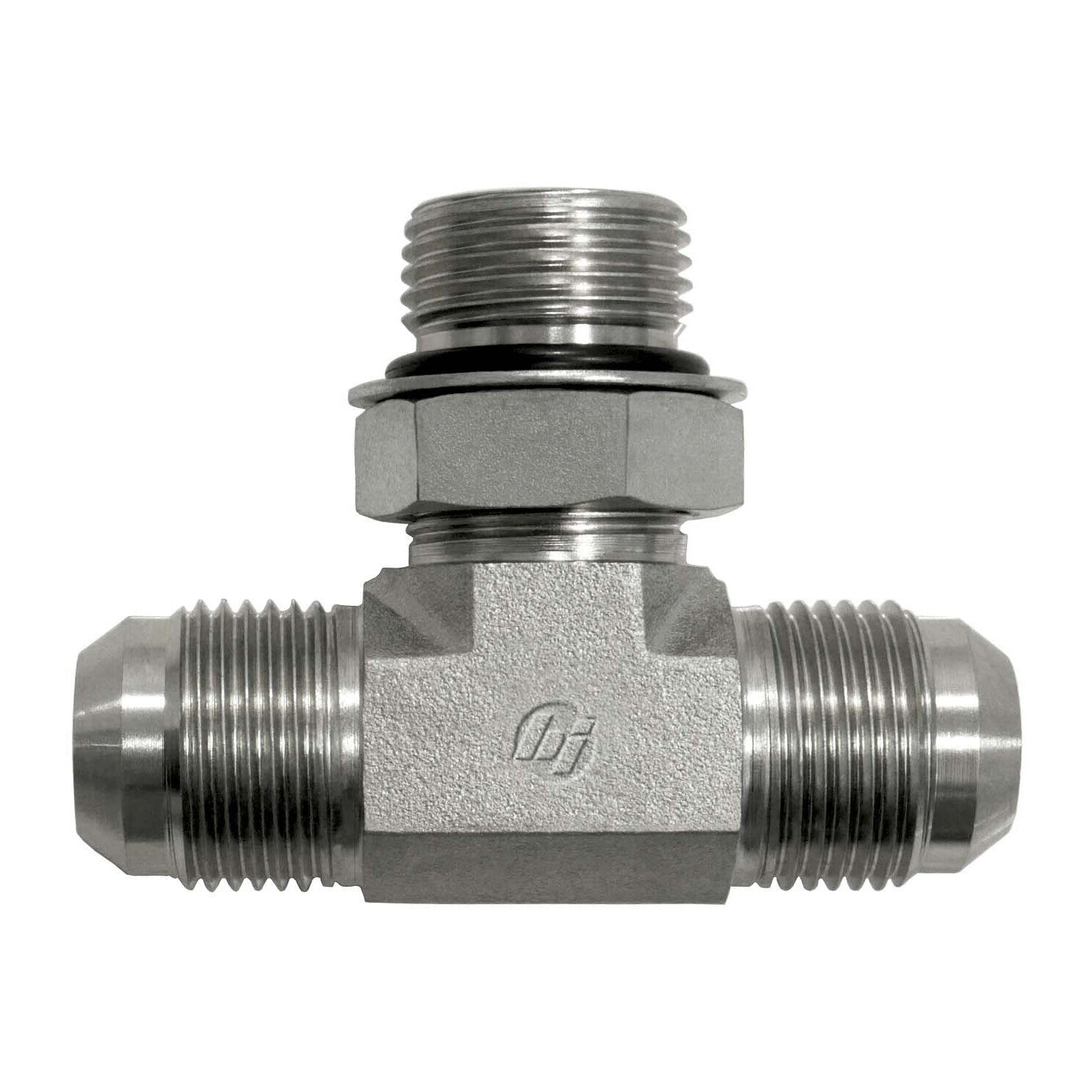

Brennan - 6803-16-16-12-NWO-FG MJ-MJ-MAORB Branch Tee
Additional Information
THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE1-5/16-12
THREAD B2 DRILL IN0.844
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.312
C HEX 1 IN1.250
OVERALL LENGTH L IN2.050
CENTERLINE LENGTH M IN1.810
CENTERLINE LENGTH M2 IN1.810
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.1125
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC, ORB
ShapeTee
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn6803-16-16-12-NWO-FG
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
