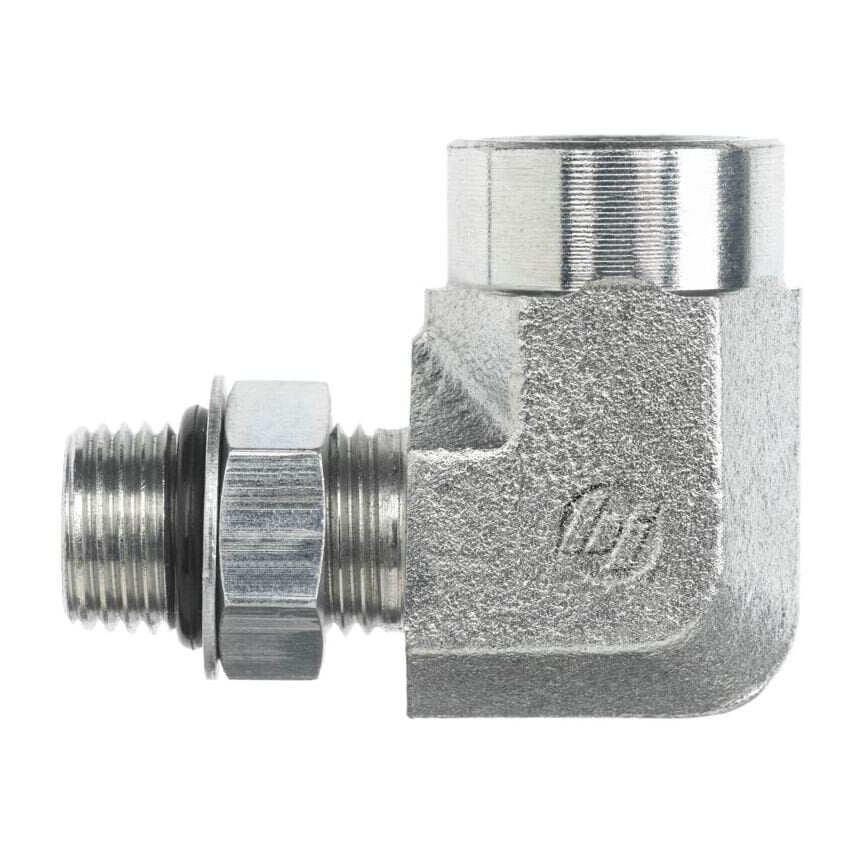

Brennan - 6805-16-12-NWO-FG MAORB-FP 90 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.312
C HEX 1 IN1.500
OVERALL LENGTH L IN1.360
CENTERLINE LENGTH M IN2.050
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.8348
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
CategoryHydraulics & Pneumatics & Plumbing
Country of originChina and Other Countries
ManufacturerBrennan
Mpn6805-16-12-NWO-FG
SubcategoryFittings/Hoses/Adapters
TypeTube Fittings and Adapters
