category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6809-12-12-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

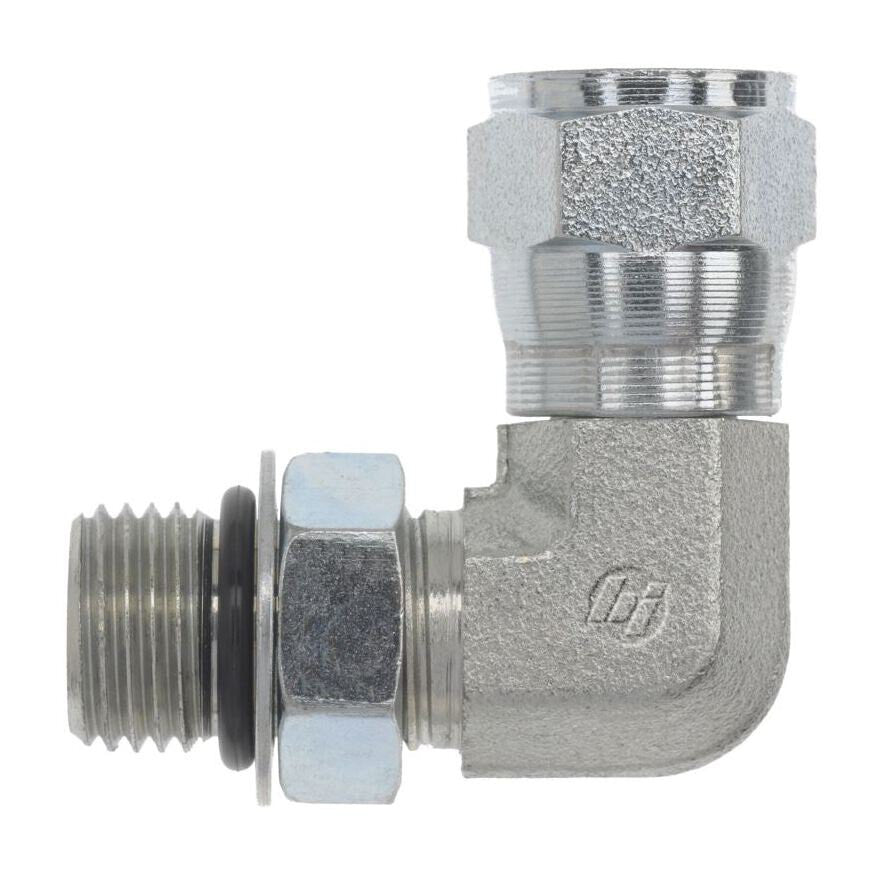

Brennan - 6809-12-12-NWO-FG MAORB-FJS 90 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-1/16-12
THREAD B2 DRILL IN0.609
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.250
OVERALL LENGTH L IN1.750
OVERALL LENGTH L2 IN1.370
CENTERLINE LENGTH M IN1.940
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.675
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC, ORB
ShapeElbow
