category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6810-08-08-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

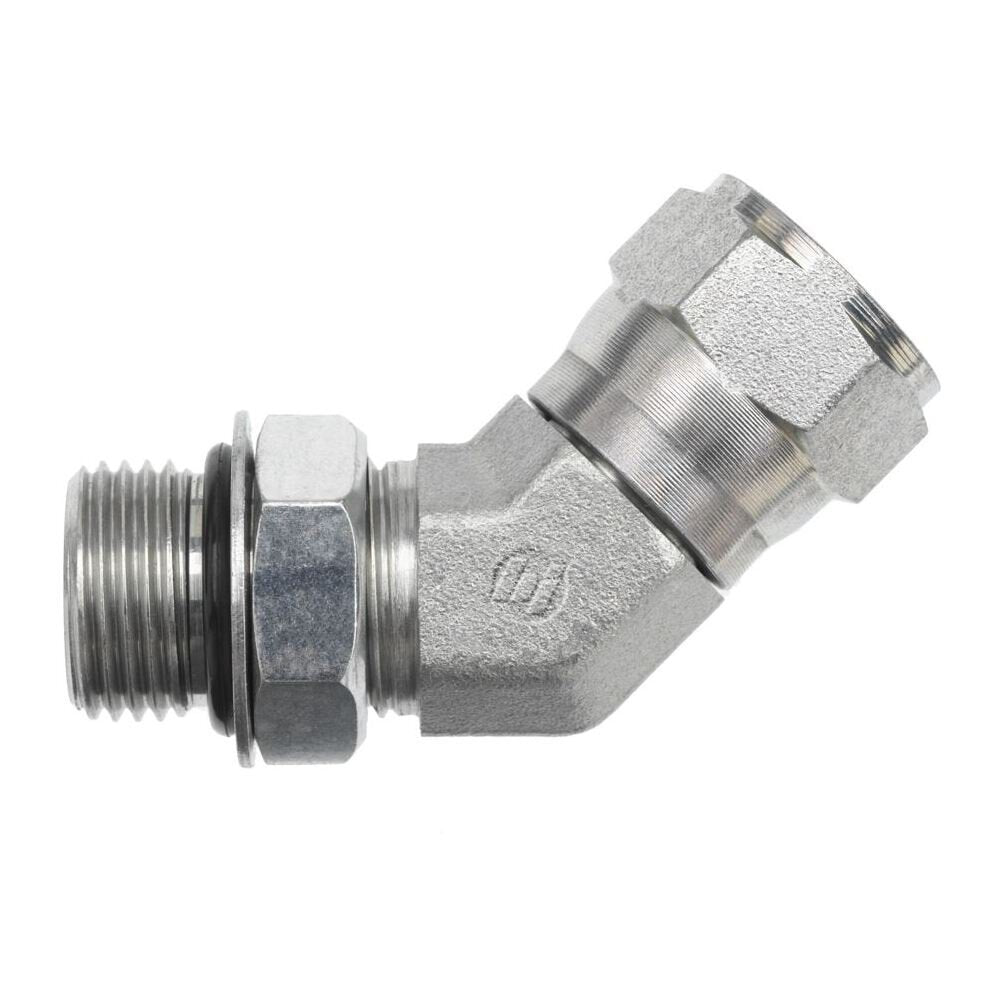

Brennan - 6810-08-08-NWO-FG MAORB-FJS 45 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE3/4-16
THREAD B2 DRILL IN0.391
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.750
C HEX 1 IN0.875
C HEX 2 IN0.875
OVERALL LENGTH L IN1.280
OVERALL LENGTH L2 IN0.850
CENTERLINE LENGTH M IN1.300
SHAPE45 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.2437
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsJIC, ORB
ShapeElbow
