category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6901-12-08-NWO-SS
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

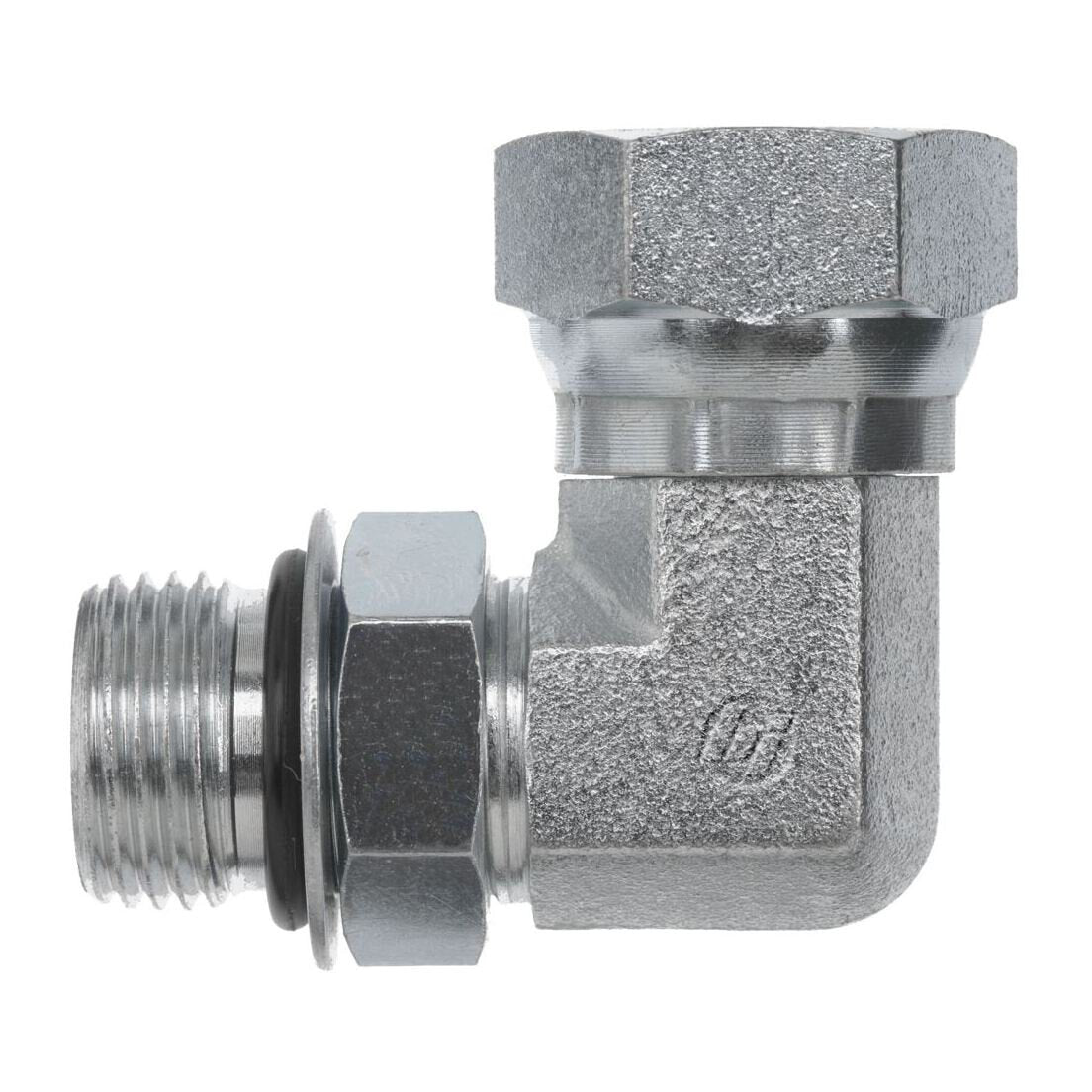

Brennan - 6901-12-08-NWO-SS MAORB-FPS 90 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.460
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.000
OVERALL LENGTH L IN1.580
OVERALL LENGTH L2 IN1.300
CENTERLINE LENGTH M IN1.940
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.3687
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
