Product Description

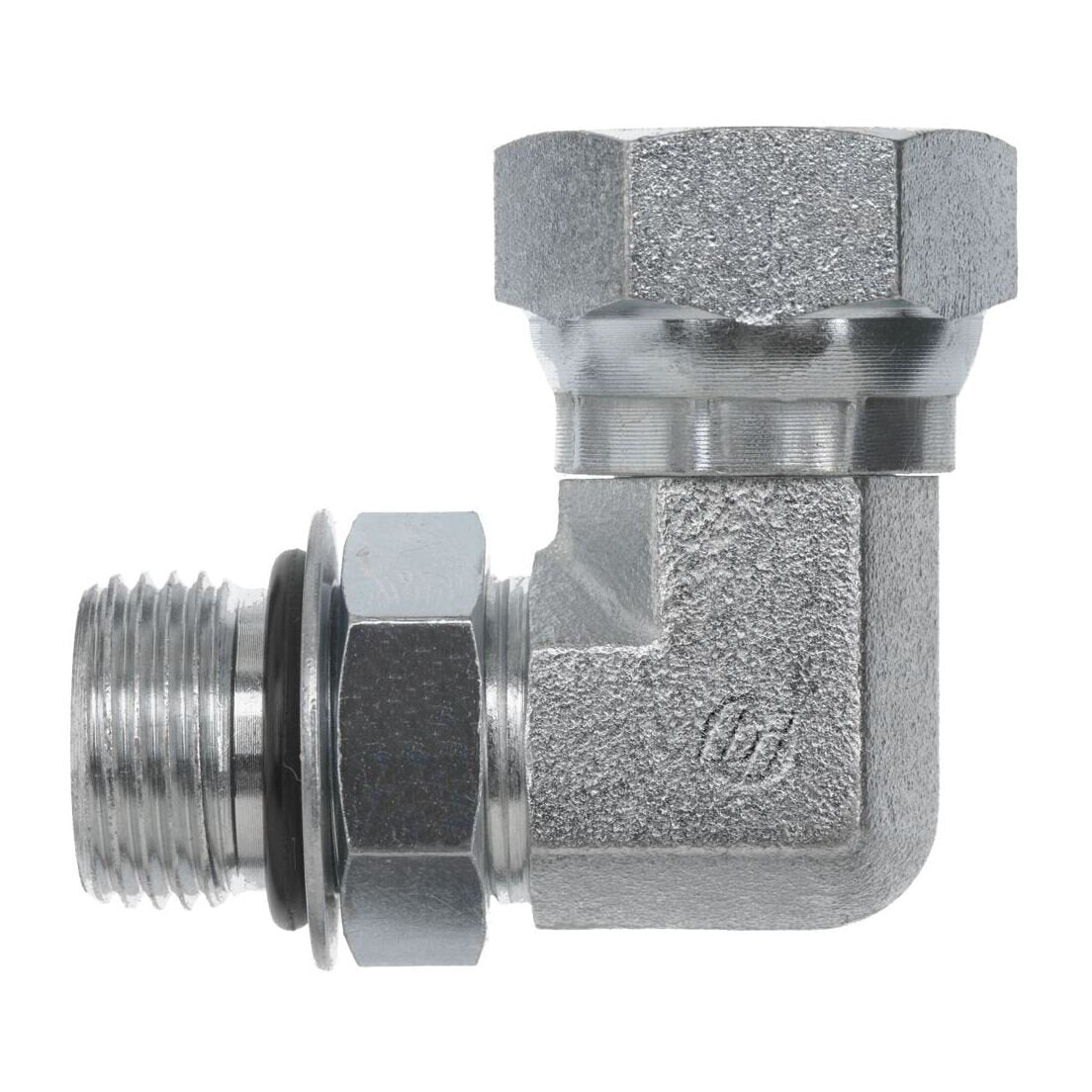

Brennan - 6901-12-12-NWO-SS MAORB-FPS 90 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.635
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.250
OVERALL LENGTH L IN1.650
OVERALL LENGTH L2 IN1.300
CENTERLINE LENGTH M IN1.940
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.35
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
