category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6901-20-20-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

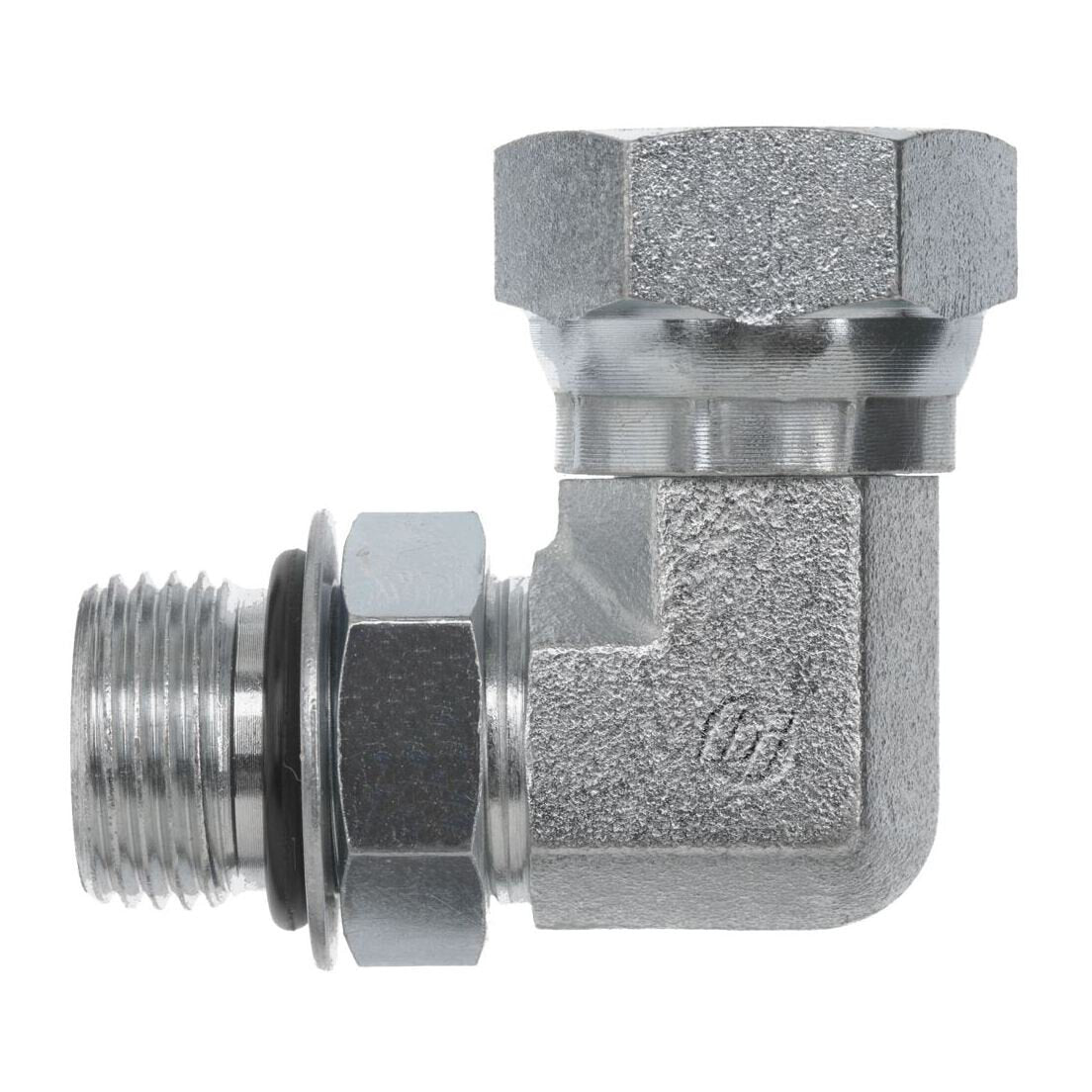

Brennan - 6901-20-20-NWO-FG MAORB-FPS 90 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-5/8-12
THREAD B1 DRILL IN1.078
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1-1/4-11-1/2
THREAD B2 DRILL IN1.01/1.16
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.625
C HEX 1 IN1.875
C HEX 2 IN1.875
OVERALL LENGTH L IN2.150
OVERALL LENGTH L2 IN1.730
CENTERLINE LENGTH M IN2.250
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.762
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
