category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6901-24-24-NWO-SS
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

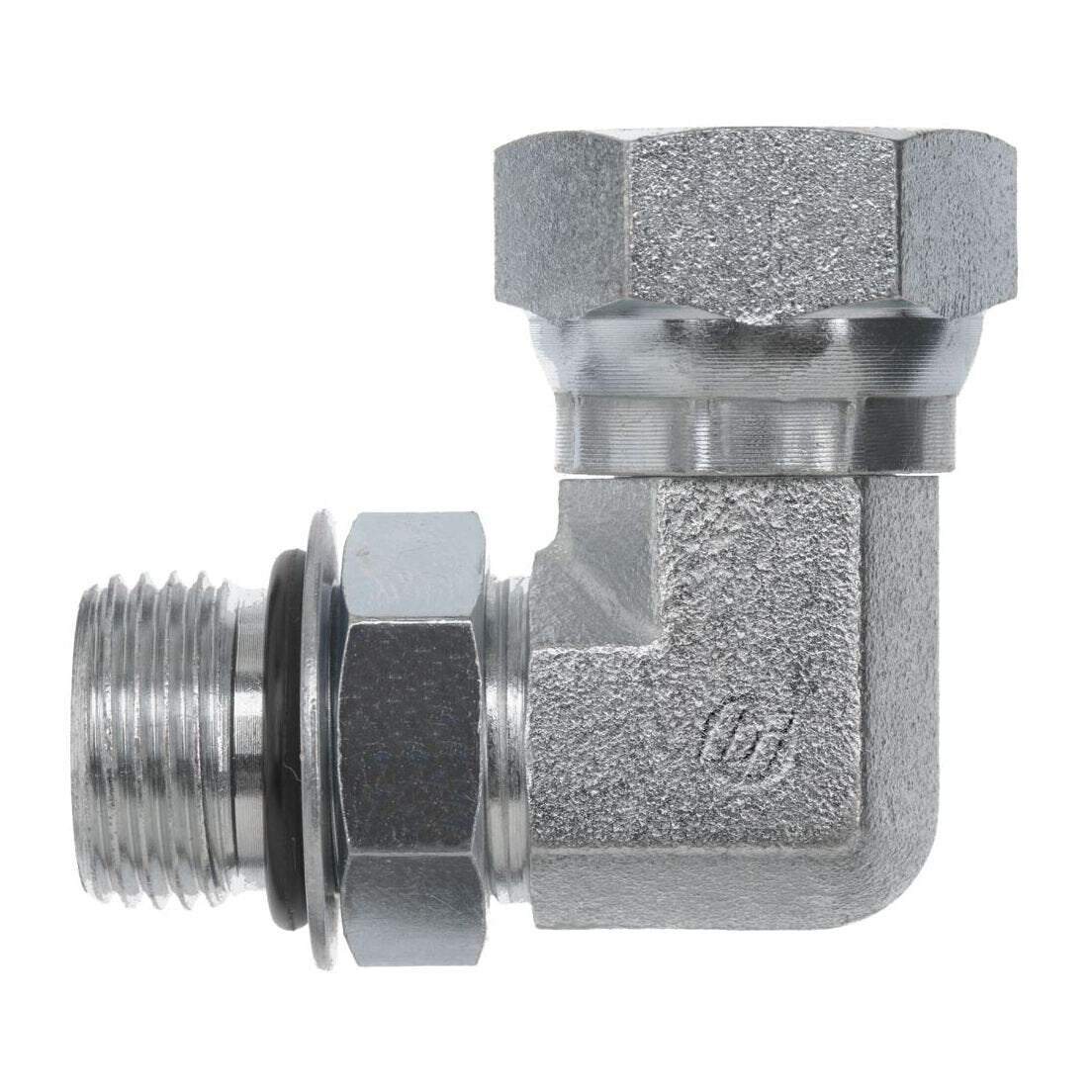

Brennan - 6901-24-24-NWO-SS MAORB-FPS 90 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-7/8-12
THREAD B1 DRILL IN1.312
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1-1/2-11-1/2
THREAD B2 DRILL IN1.317
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.875
C HEX 1 IN2.125
C HEX 2 IN2.125
OVERALL LENGTH L IN2.310
OVERALL LENGTH L2 IN1.890
CENTERLINE LENGTH M IN2.390
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS4.7972
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
