Product Description

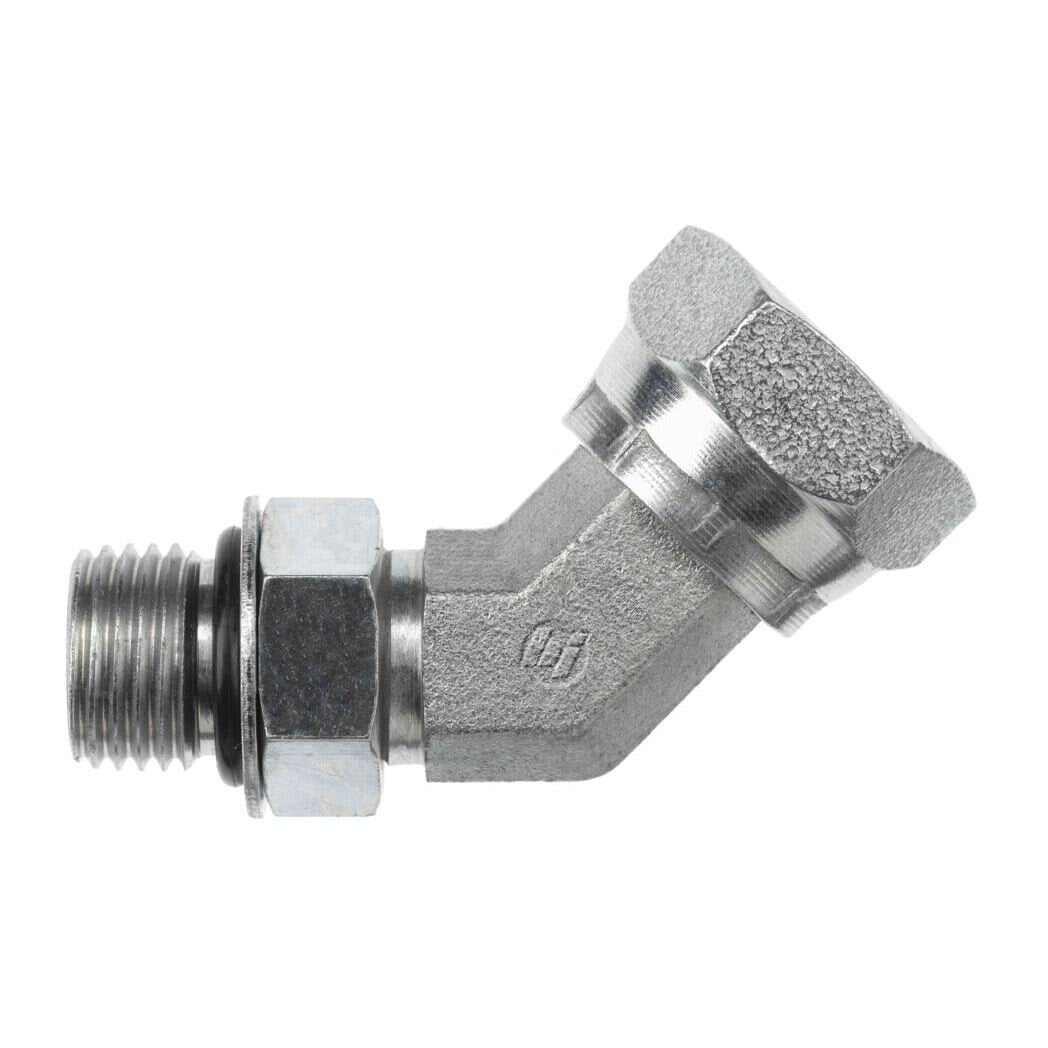

Brennan - 6902-08-08-NWO-SS MAORB-FPS 45 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.46
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.875
C HEX 1 IN0.875
C HEX 2 IN1.000
OVERALL LENGTH L IN1.160
OVERALL LENGTH L2 IN0.880
CENTERLINE LENGTH M IN1.360
SHAPE45 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
