category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6902-10-08-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

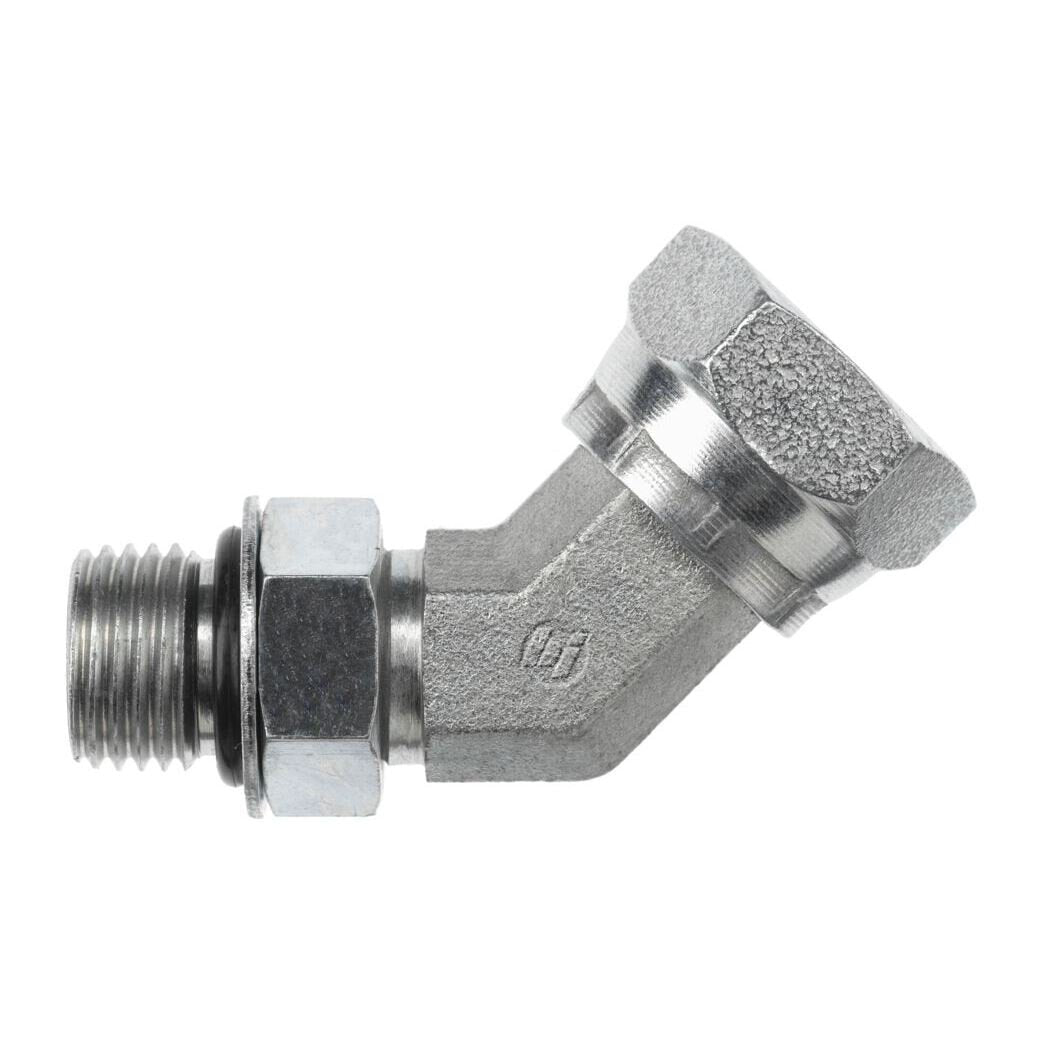

Brennan - 6902-10-08-NWO-FG MAORB-FPS 45 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.46
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.875
C HEX 1 IN1.000
C HEX 2 IN1.000
OVERALL LENGTH L IN1.160
OVERALL LENGTH L2 IN0.880
CENTERLINE LENGTH M IN1.520
SHAPE45 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.3375
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
