Product Description

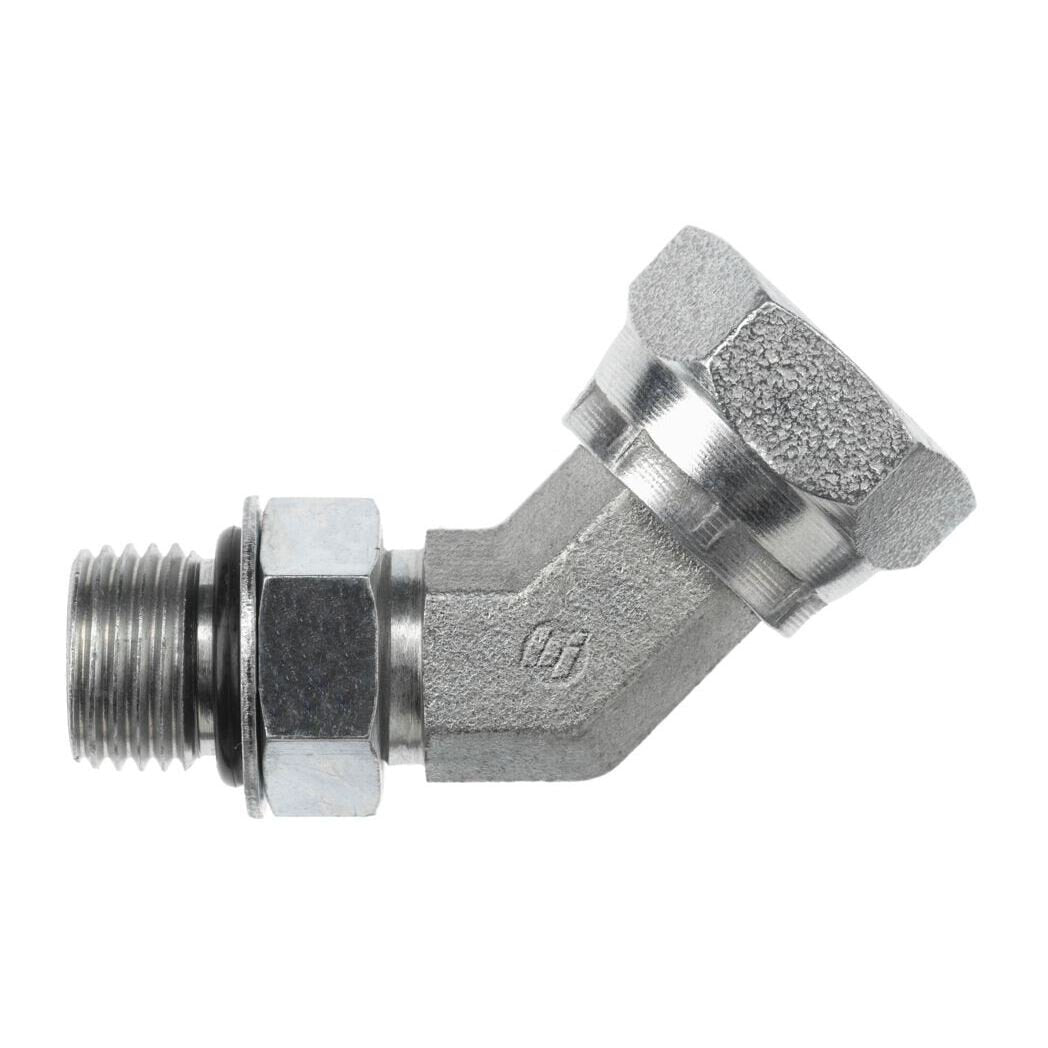

Brennan - 6902-12-16-NWO-FG MAORB-FPS 45 Elbow
Additional Information
THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1-11-1/2
THREAD B2 DRILL IN0.78
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.312
C HEX 1 IN1.250
C HEX 2 IN1.500
OVERALL LENGTH L IN1.500
OVERALL LENGTH L2 IN1.150
CENTERLINE LENGTH M IN1.860
SHAPE45 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.8125
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeElbow
