category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6911-08-08-08-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

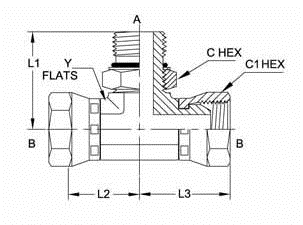

Brennan - 6911-08-08-08-NWO-FG MAORB-FPS-FPS Tee
Additional Information
THREAD B1 TYPEFEMALE NPSM SWIVEL
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.460
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.460
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.875
C HEX 1 IN1.000
C HEX 2 IN1.000
C HEX 3 IN0.875
OVERALL LENGTH L IN1.450
CENTERLINE LENGTH M IN1.390
CENTERLINE LENGTH M2 IN1.110
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.45
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeTee
