category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
6911-10-12-12-NWO-FG
subcategory:
Fittings/Hoses/Adapters
type:
Tube Fittings and Adapters
Product Description

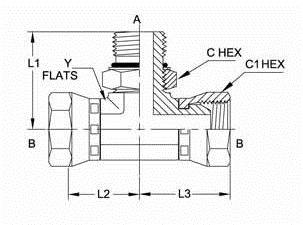

Brennan - 6911-10-12-12-NWO-FG MAORB-FPS-FPS Tee
Additional Information
THREAD B1 TYPEFEMALE NPSM SWIVEL
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPSM SWIVEL
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.635
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.000
C HEX 1 IN1.250
C HEX 2 IN1.250
C HEX 3 IN1.000
OVERALL LENGTH L IN1.780
CENTERLINE LENGTH M IN1.780
CENTERLINE LENGTH M2 IN1.300
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.7375
CALIFORNIA RESIDENTSPROP-65 WARNING
ConnectionsNPT, ORB
ShapeTee
