category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7002-05-06-BS-VITON
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

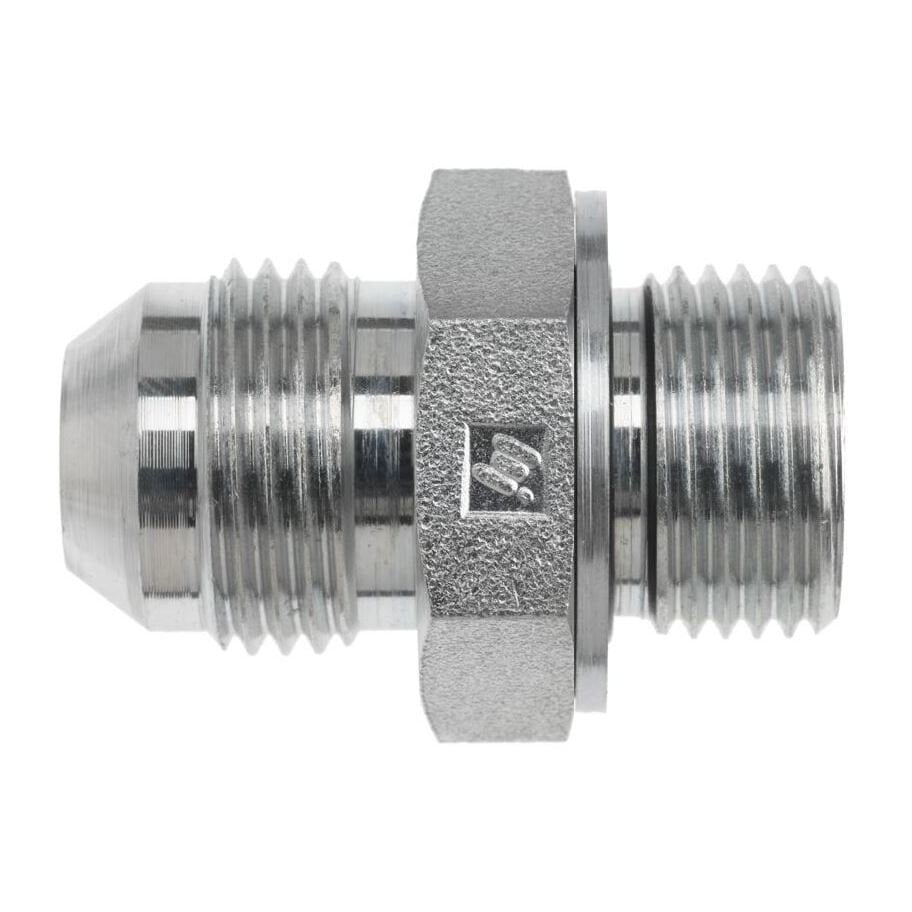

Brennan - 7002-05-06-BS-VITON MJ-MBSPP STRAIGHT WITH 60 DEGREE SEAT & BONDED SEAL ASSEMBLED (FOR ISO 1179 PORT)
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B11/2-20
THREAD DRILL B1 (MM)5.94
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B23/8-19
THREAD DRILL B2 (MM)9.53
THREAD SPECIFICATION B260 DEG SEAT SWIVEL CONNECTION
THREAD SPECIFICATION B2ASSEMBLED BSPP BONDED SEAL
THREAD SPECIFICATION B2FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL9900-06-VITON
BODY HEX (MM)22.0
OVERALL LENGTH L (MM)34.0
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
O-RING / SEAL MATERIALVITON
WEIGHT (LBS)0.088
MAXIMUM DYNAMIC PRESSURE (PSI)5,100
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)1.004
ConnectionsJIC, BSP
ShapeStraight
