category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7005-04-L10-16-NBR-SS
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

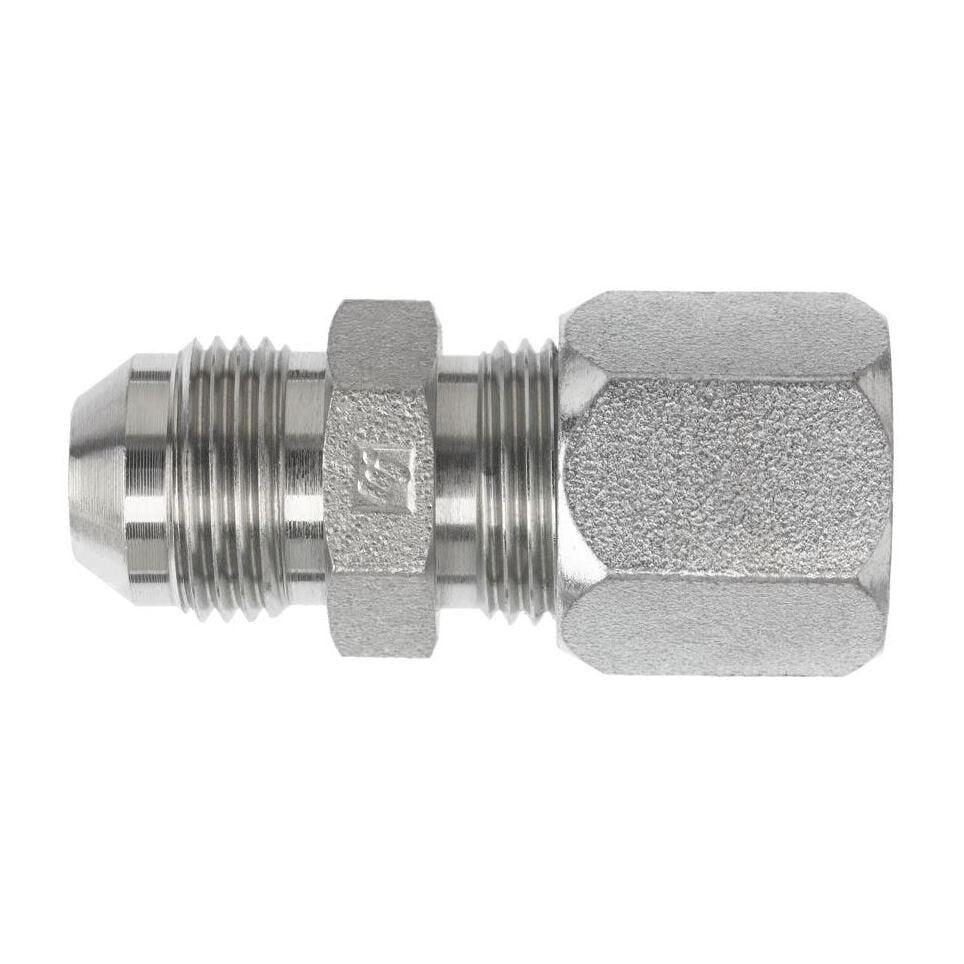

Brennan - 7005-04-L10-16-NBR-SS MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 LIGHT WITH DIN NUT AND SLEEVE ASSEMBLED
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B17/16-20
THREAD DRILL B1 (MM)4.4
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2METRIC DIN TUBE
TUBE SIZE B2L10
THREAD SIZE B28.0
THREAD SPECIFICATION B2DIN 2353
THREAD SPECIFICATION B2ISO 8434-1
THREAD SPECIFICATION B2ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUTD0318-L10-SS
DIN TUBE SLEEVED0319-10-SS
BODY HEX (MM)16.8
HEX C 1 (MM)19.0
OVERALL LENGTH L2 (MM)37.5
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)5,800
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)0.826
ConnectionsJIC, Metric
ShapeStraight
