Brennan

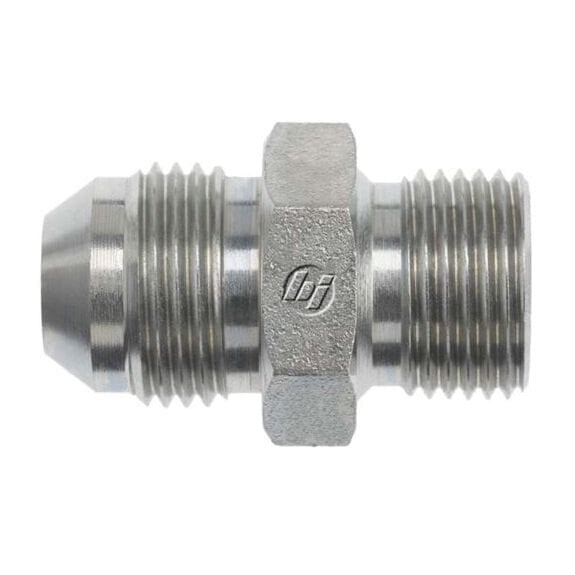

Brennan 7005-04-LL08-12 04MJ-12MM MBT Strt. 12MM Port/Ll08 Tube

Brennan 7005-04-LL08-12 04MJ-12MM MBT Strt. 12MM Port/Ll08 Tube

Dropship

Get it by Mon, Feb 16 - Sat, Feb 21

SKU kpi163-7005-04-LL08-12

$11.40 USD
$11.40 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Hydraulics & Pneumatics & Plumbing
country_of_origin: China and Other Countries
manufacturer: Brennan
mpn: 7005-04-LL08-12
subcategory: Fittings/Hoses/Adapters
type: Conversion Adapters

Product Description

Brennan - 7005-04-LL08-12 MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 EXTRA LIGHT

Additional Information

THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B17/16-20
THREAD DRILL B1 (MM)4.0
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2M12X1.5
THREAD DRILL B2 (MM)4.0
THREAD SPECIFICATION B2DIN 2353, ISO 8434-1
BODY HEX (MM)14.0
OVERALL LENGTH L (MM)30.8
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
MAXIMUM DYNAMIC PRESSURE (PSI)6,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)0.368
ConnectionsJIC, Metric
ShapeStraight
