category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7005-04-S08-16-NBR-SS
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

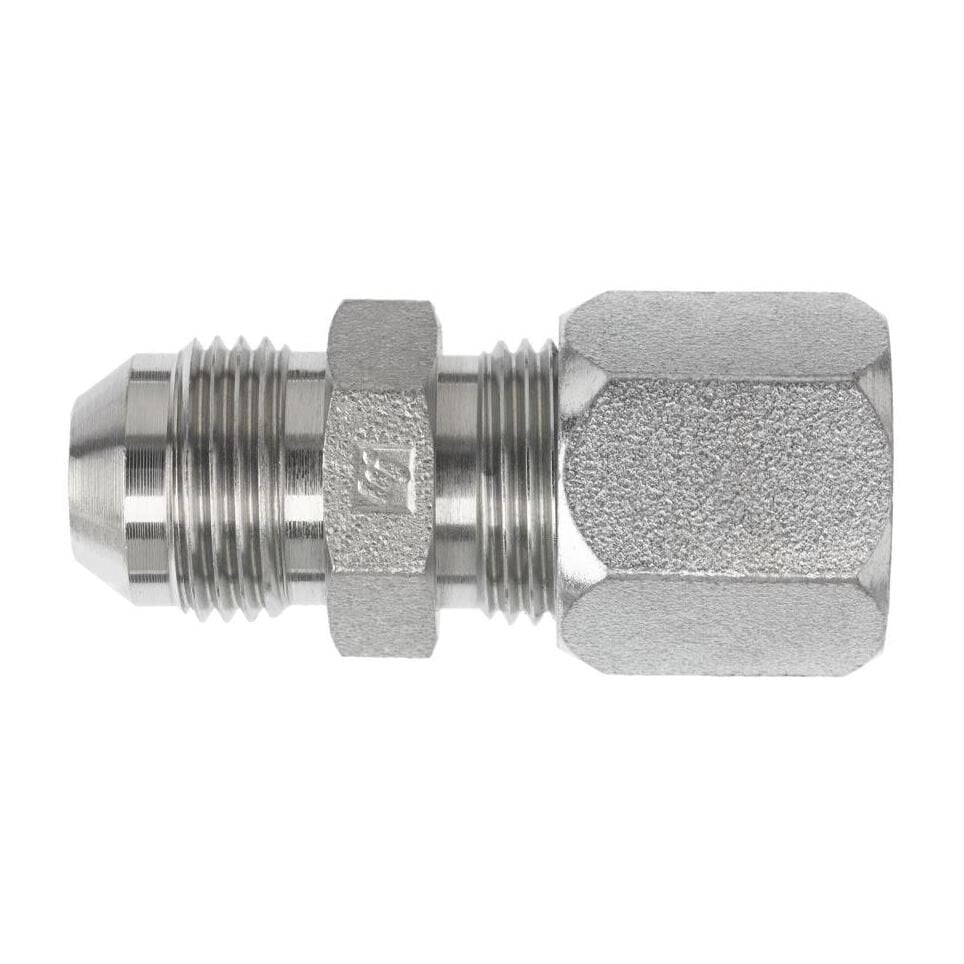

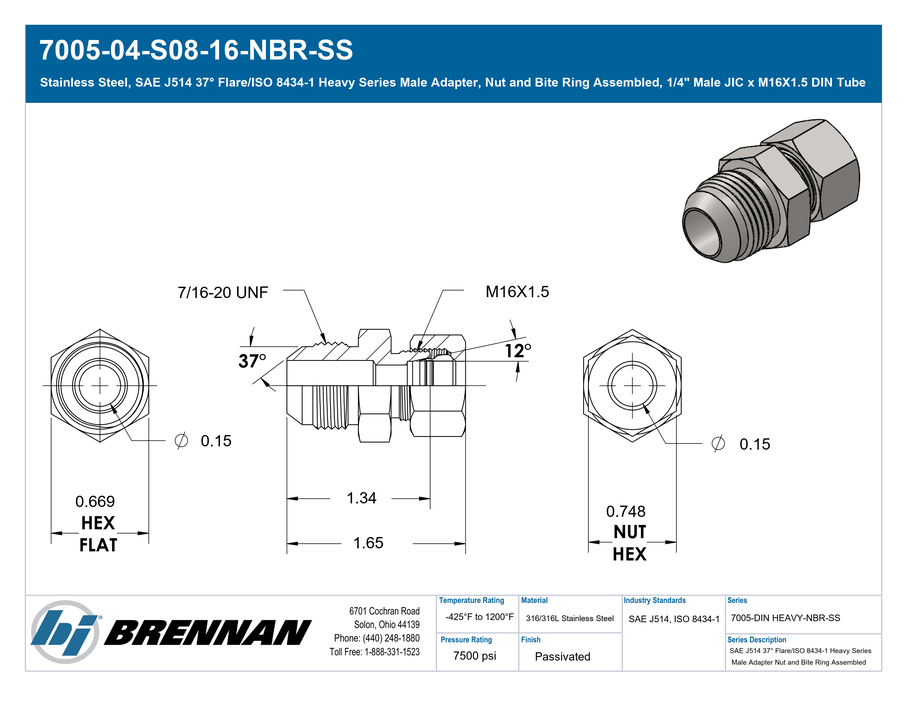

Brennan - 7005-04-S08-16-NBR-SS MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 LIGHT WITH DIN NUT AND SLEEVE ASSEMBLED
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B17/16-20
THREAD DRILL B1 (MM)3.8
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2METRIC DIN TUBE
TUBE SIZE B2S08
THREAD SIZE B23.8
THREAD SPECIFICATION B2DIN 2353
THREAD SPECIFICATION B2ISO 8434-1
THREAD SPECIFICATION B2ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUTD0318-S08-SS
DIN TUBE SLEEVED0319-08-SS
BODY HEX (MM)17.0
HEX C 1 (MM)19.0
OVERALL LENGTH L2 (MM)40.0
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)7,500
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)0.881
ConnectionsJIC, Metric
ShapeStraight
