category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7005-08-S16-24-NBR
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

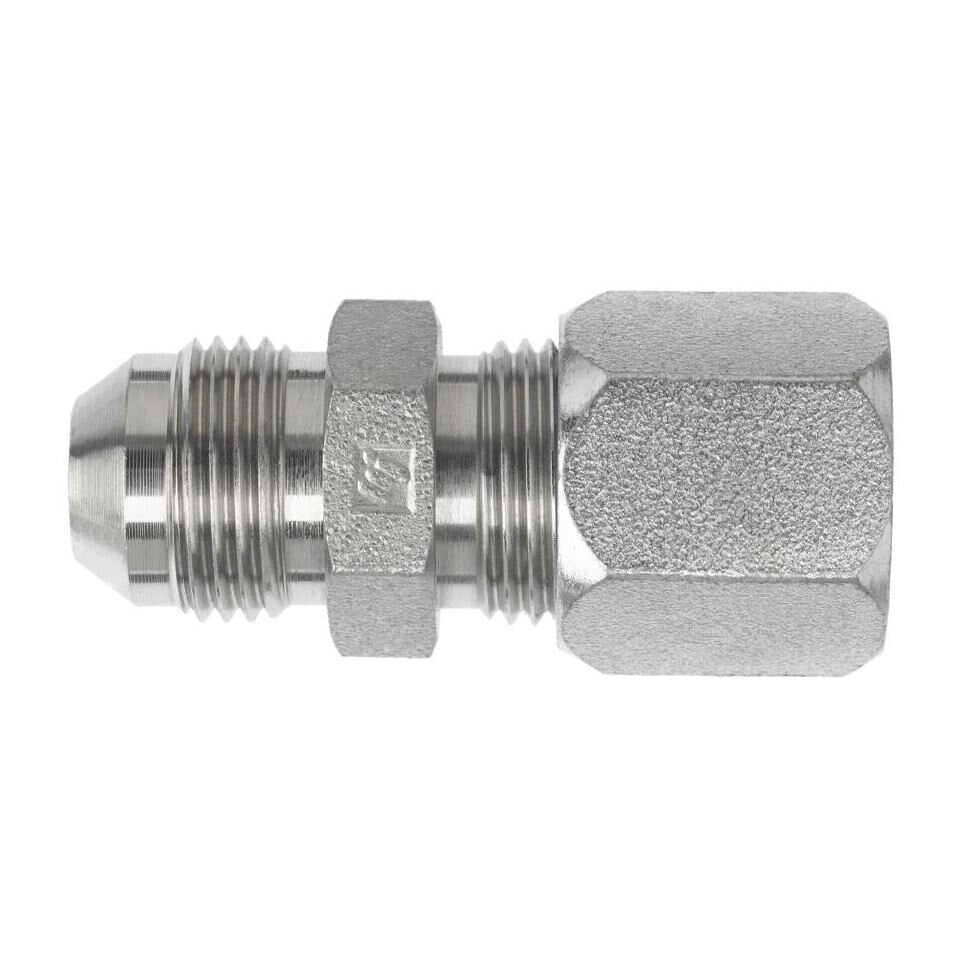

Brennan - 7005-08-S16-24-NBR MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 LIGHT WITH DIN NUT AND SLEEVE ASSEMBLED
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B13/4-16
THREAD DRILL B1 (MM)9.6
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2METRIC DIN TUBE
TUBE SIZE B2S16
THREAD SIZE B212.0
THREAD SPECIFICATION B2DIN 2353
THREAD SPECIFICATION B2ISO 8434-1
THREAD SPECIFICATION B2ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUTD0318-S16
DIN TUBE SLEEVED0319-16
BODY HEX (MM)27.0
HEX C 1 (MM)30.0
OVERALL LENGTH L2 (MM)49.0
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
WEIGHT (LBS)0.189
MAXIMUM DYNAMIC PRESSURE (PSI)6,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)2.691
ConnectionsJIC, Metric
ShapeStraight
