category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7005-10-S16-24-NBR-SS
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

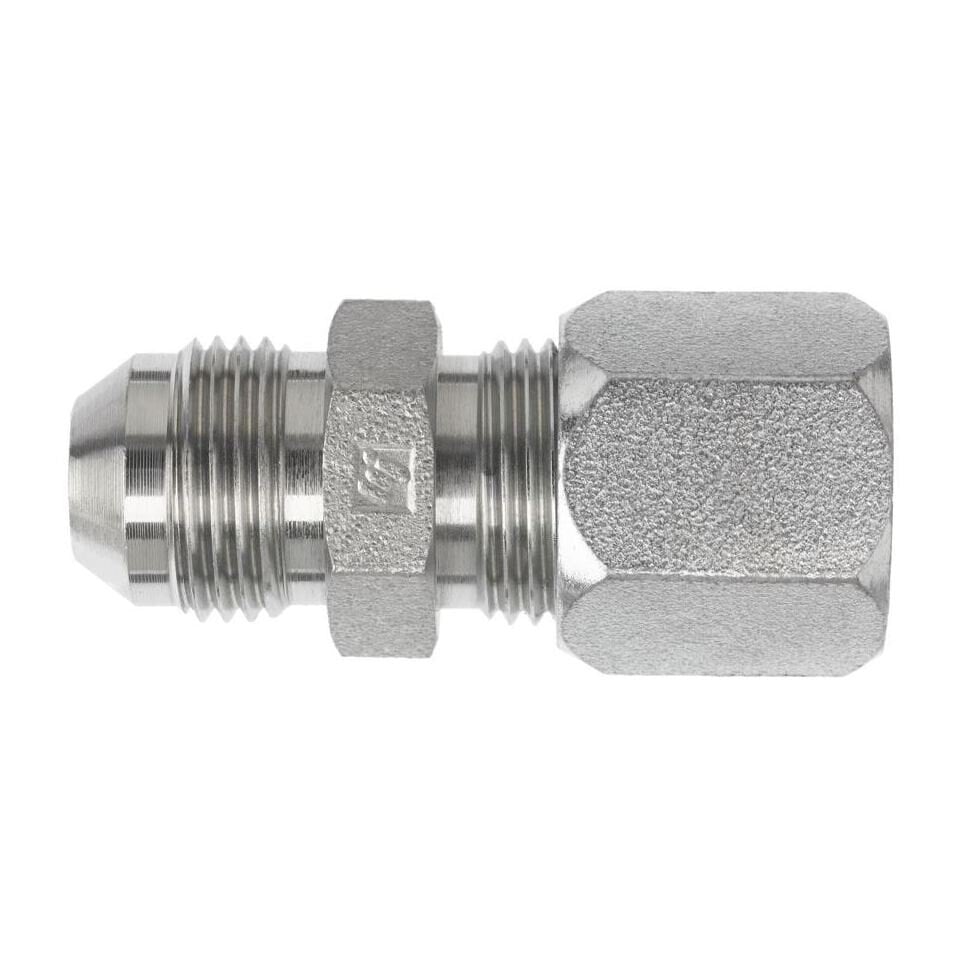

Brennan - 7005-10-S16-24-NBR-SS MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 LIGHT WITH DIN NUT AND SLEEVE ASSEMBLED
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B17/8-14
THREAD DRILL B1 (MM)12.0
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2METRIC DIN TUBE
TUBE SIZE B2S16
THREAD SIZE B212.0
THREAD SPECIFICATION B2DIN 2353
THREAD SPECIFICATION B2ISO 8434-1
THREAD SPECIFICATION B2ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUTD0318-S16-SS
DIN TUBE SLEEVED0319-16-SS
BODY HEX (MM)27.0
HEX C 1 (MM)30.0
OVERALL LENGTH L2 (MM)51.3
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)5,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)2.817
ConnectionsJIC, Metric
ShapeStraight
