category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7005-12-L22-30X1.5
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

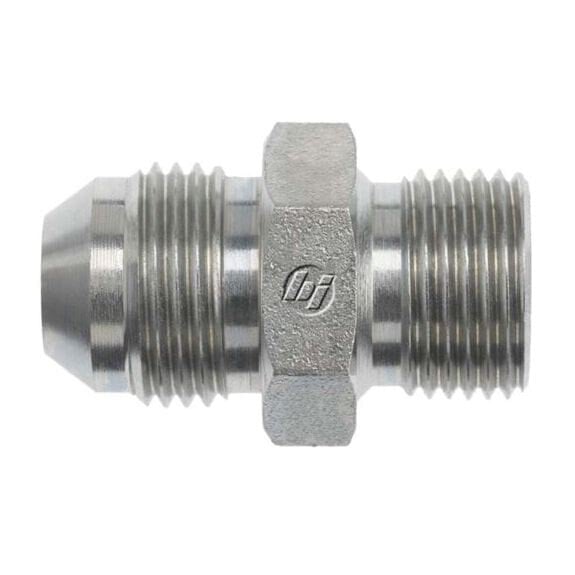

Brennan - 7005-12-L22-30X1.5 MJ-MM STRAIGHT WITH 24 DEGREE SEAT, KOBELCO
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B11-1/16-12
THREAD DRILL B1 (MM)15.5
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2M30X1.5
THREAD DRILL B2 (MM)19.0
THREAD SPECIFICATION B2KOBELCO
THREAD SPECIFICATION B2ISO 261
THREAD SPECIFICATION B2ISO 8434-1
THREAD SPECIFICATION B2DIN 235
BODY HEX (MM)32.0
OVERALL LENGTH L (MM)44.0
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
WEIGHT (LBS)0.306
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)2.749
ConnectionsJIC, Metric
ShapeStraight
