category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7012-08-04-VITON
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

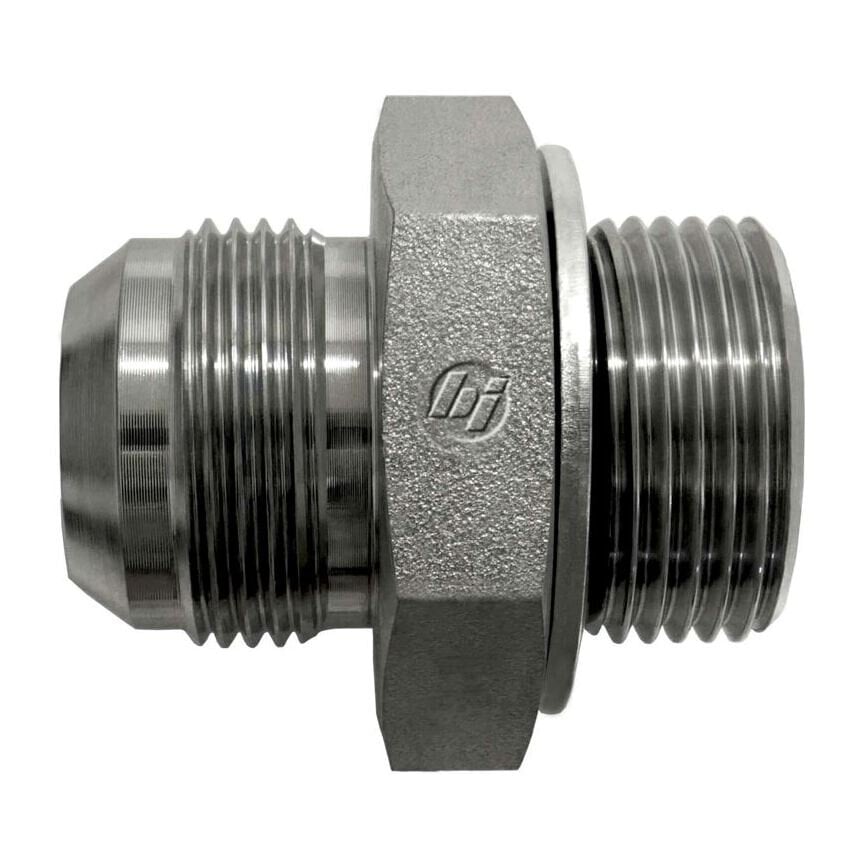

Brennan - 7012-08-04-VITON MJ-MBSPP ORR STRAIGHT. MBSPP WITH O-RING AND RETAINING RING
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B13/4-16
THREAD DRILL B1 (MM)9.9
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP ORR
THREAD SIZE B21/4-19
THREAD DRILL B2 (MM)7.4
THREAD SPECIFICATION B2O-RING AND RETAINING RING
THREAD SPECIFICATION B2FOR ISO 1179 PORT
THREAD SPECIFICATION B2ISO 1179
THREAD SPECIFICATION B2ISO 8434-6
THREAD SPECIFICATION B2BS 5200
BODY HEX (MM)22.23
OVERALL LENGTH L (MM)35.7
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
O-RING / SEAL MATERIALVITON
WEIGHT (LBS)0.006
MAXIMUM DYNAMIC PRESSURE (PSI)5,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)1.077
ConnectionsJIC, BSP
ShapeStraight
