category:
Hydraulics & Pneumatics & Plumbing
country_of_origin:
China and Other Countries
manufacturer:
Brennan
mpn:
7012-12-12-SS
subcategory:
Fittings/Hoses/Adapters
type:
Conversion Adapters
Product Description

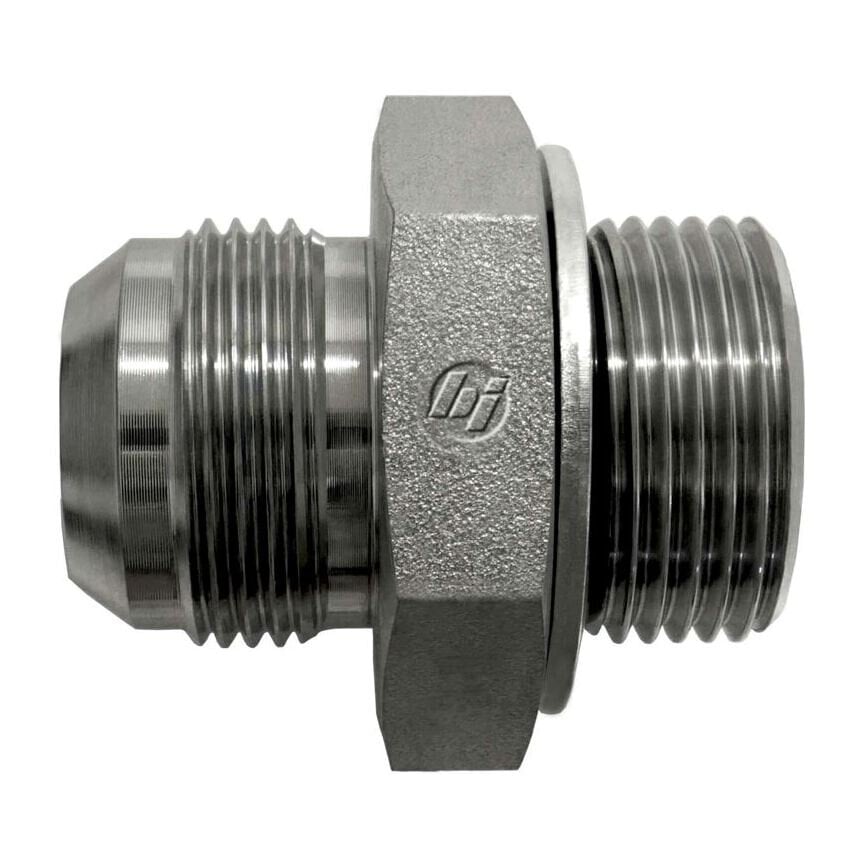

Brennan - 7012-12-12-SS MJ-MBSPP ORR STRAIGHT. MBSPP WITH O-RING AND RETAINING RING
Additional Information
THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B11-1/16-12
THREAD DRILL B1 (MM)15.47
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP ORR
THREAD SIZE B23/4-14
THREAD DRILL B2 (MM)15.47
THREAD SPECIFICATION B2O-RING AND RETAINING RING
THREAD SPECIFICATION B2FOR ISO 1179 PORT
THREAD SPECIFICATION B2ISO 1179
THREAD SPECIFICATION B2ISO 8434-6
THREAD SPECIFICATION B2BS 5200
BODY HEX (MM)31.75
OVERALL LENGTH L (MM)47.65
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT (LBS)0.288
MAXIMUM DYNAMIC PRESSURE (PSI)4,000
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)2.931
ConnectionsJIC, BSP
ShapeStraight
