category:
Balancing Valves
height:
3.25"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/18158_EN.pdf
length:
5.75"
manufacturer:
Caleffi
mpn:
130400A
subcategory:
Static (manual)
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01251_NA.pdf
type:
Flo-Set™
weight:
0.3 LB
width:
6"
Instruction Sheet Product Description

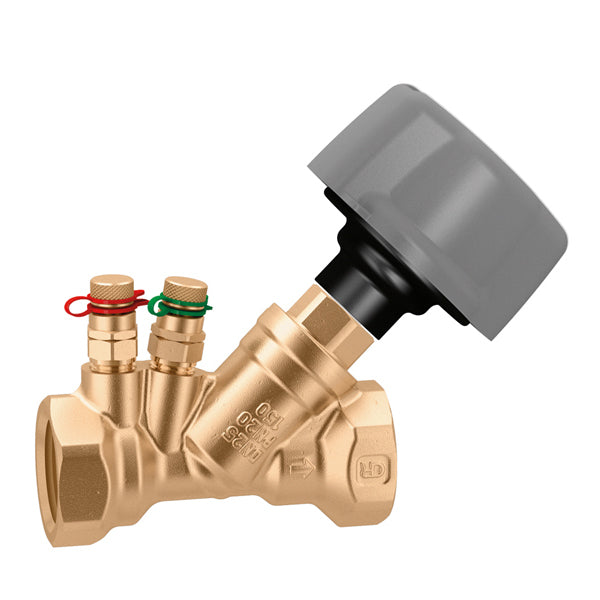

Caleffi - 130400A Static Balancing Valve (fixed orifice, low-lead) Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Multi-turn adjustment range. Memory stop feature. Stainless steel valve plug. Teflon® stem guide bearing. Meets requirements of ANSI/NSF 372-2011.
Additional Information
Number Of Adjustment Turns 6
Connection 1/2" Fnpt
Maximum Working Pressure 232 Psi
Medium Temperature Range -4–250 °F
Cv Max 37
Material Dzr Low Lead Brass
