category:
Balancing Valves
height:
4.25"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/18204_NA.pdf
length:
7.25"
manufacturer:
Caleffi
mpn:
142281A
subcategory:
Static (manual)
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01250_NA.pdf
type:
Flo-Set™
weight:
0.7 LB
width:
5"
Instruction Sheet Product Description

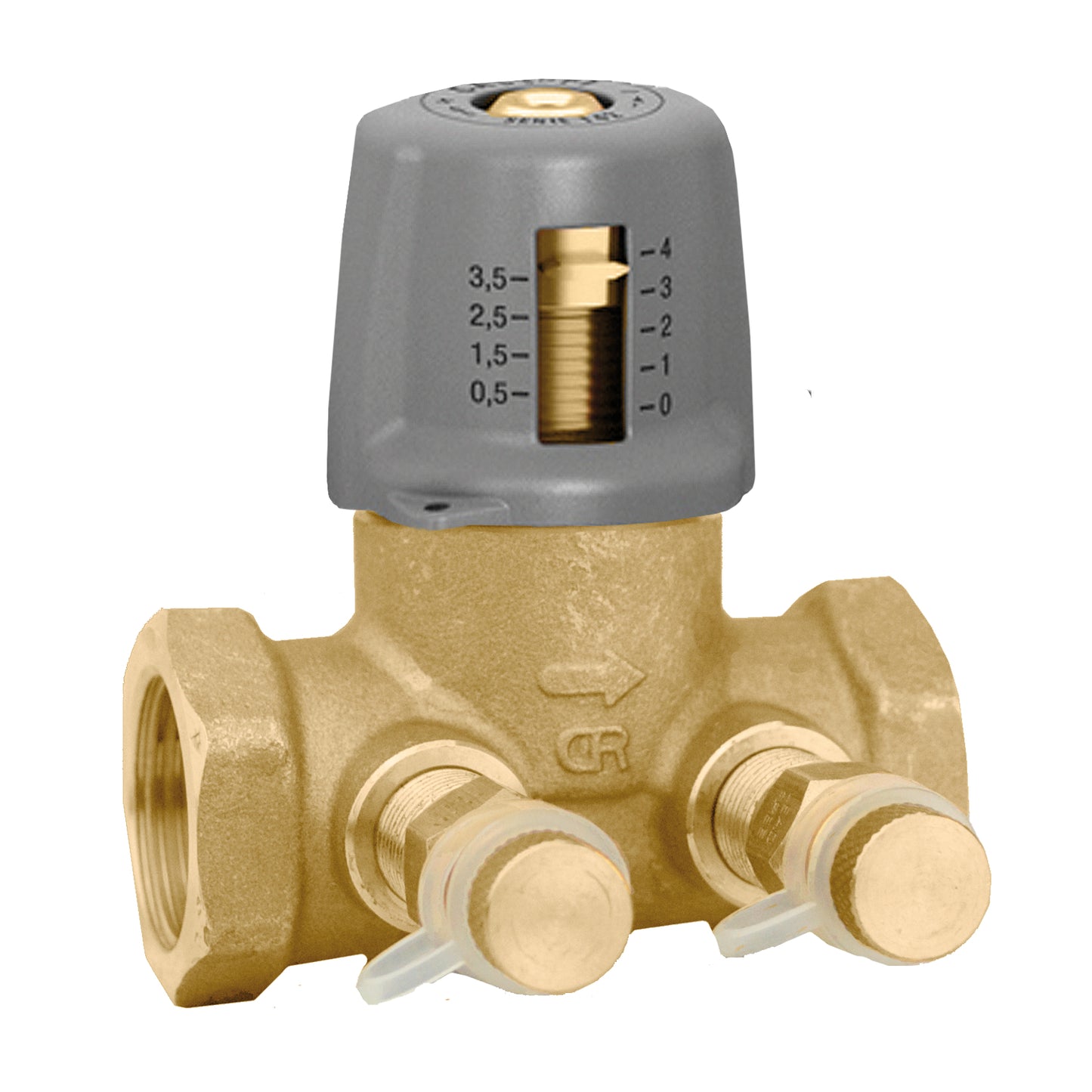

Caleffi - 142281A Static balancing valve (variable orifice, low-lead) Certified to Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes. Memory stop feature. Characterized plug for smooth adjustment. Meets requirements of ANSI/NSF 372-2011.
Additional Information
Connection 1 1/2" Fnpt
Maximum Working Pressure 232 Psi
Medium Temperature Range 14–250 °F
Cv Max 168
Material Dzr Low Lead Brass
