category:
Zone Valves, Controls and Coil Kits
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/NA10897_0.pdf
manufacturer:
Caleffi
mpn:
145663A 16G
subcategory:
Pressure Independent Control Valves (PICV)
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01262_NA.pdf
type:
FLOWMATIC®
weight:
0.3 LB
Instruction Sheet Product Description

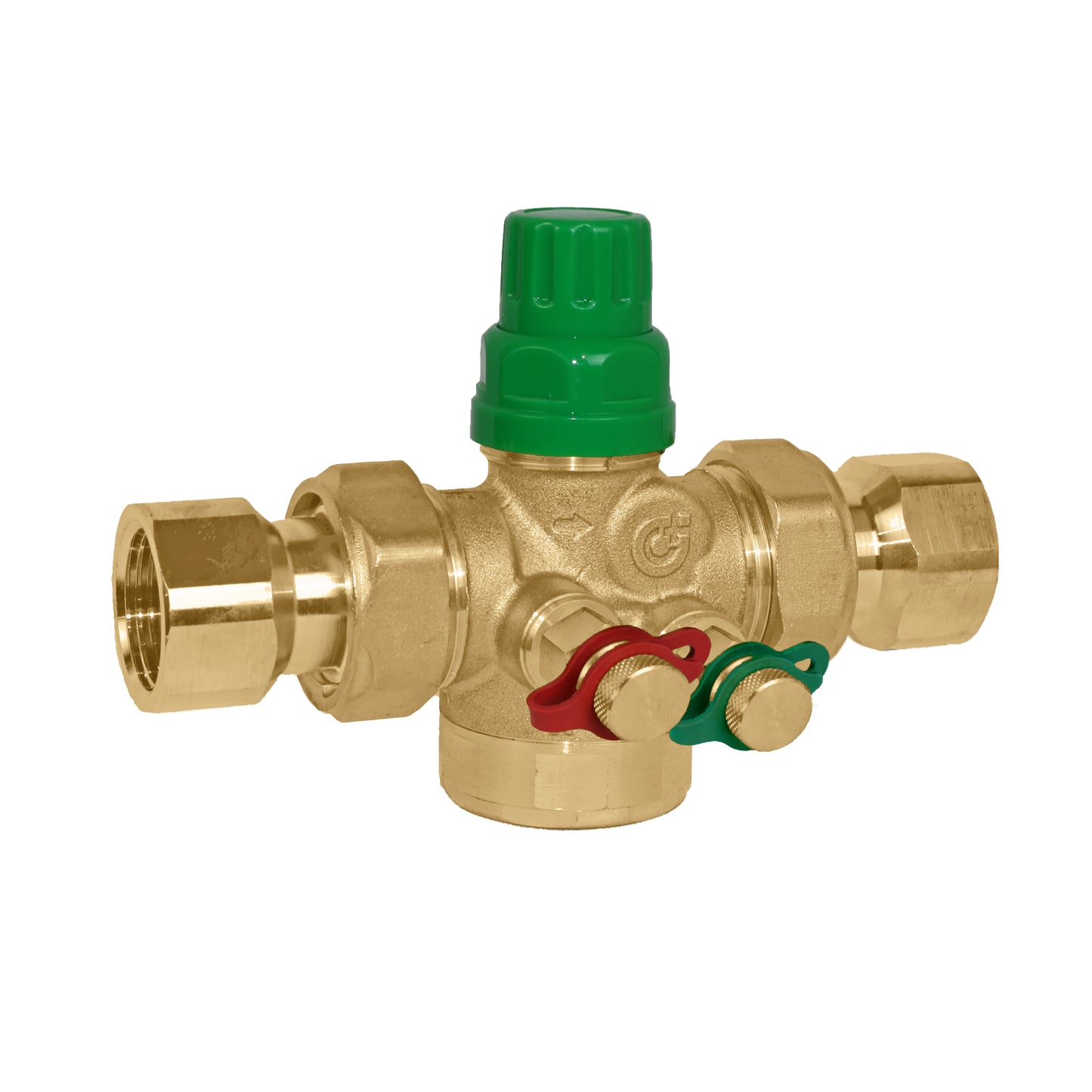

Caleffi - 145663A 16G Pressure independent control valve (NPT) Flow rate is adjusted in two different ways - Manually, on the automatic flow rate regulator (to restrict the maximum value);- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Additional Information
Connection 1" Fnpt, Union
Maximum Working Pressure 360 Psi
Medium Temperature Range 4-248 °F
Maximum Percentage Of Glycol 50 %
Medium Technical Water, Glycol Solutions
Flow Rate Working Range 008–040 M³/H
Material Dezincification Resistant Brass Dr
