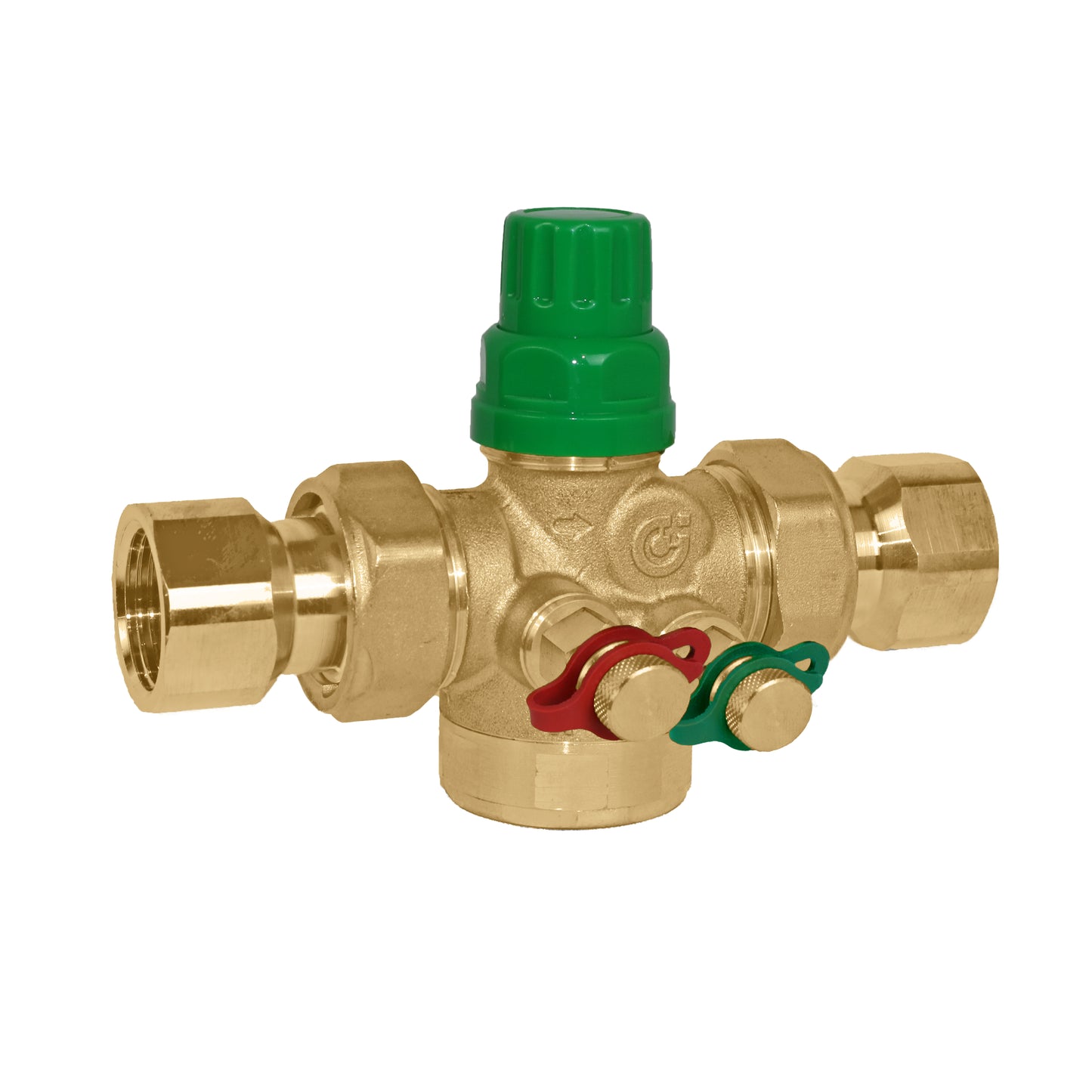

Caleffi - 145663A 7G9 Pressure independent control valve (NPT) Flow rate is adjusted in two different ways - Manually, on the automatic flow rate regulator (to restrict the maximum value);- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.
Additional Information
Connection 1" Fnpt, Union
Maximum Working Pressure 360 Psi
Medium Temperature Range 4-248 °F
Maximum Percentage Of Glycol 50 %
Medium Technical Water, Glycol Solutions
Flow Rate Working Range 008–040 M³/H
Material Dezincification Resistant Brass Dr
CategoryZone Valves, Controls and Coil Kits
ManufacturerCaleffi
Mpn145663A 7G9
SubcategoryPressure Independent Control Valves (PICV)
TypeFLOWMATIC®
Weight0.3 LB
Instruction Sheet
