category:
Distribution Manifolds and Mixing Stations
height:
5"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/NA10814.pdf
length:
27.5"
manufacturer:
Caleffi
mpn:
1725L1A IN
subcategory:
Thermostatic Manifold Mixing Stations
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01155_NA.pdf
type:
Low Temperature
weight:
6.4 LB
width:
17.75"
Instruction Sheet Product Description

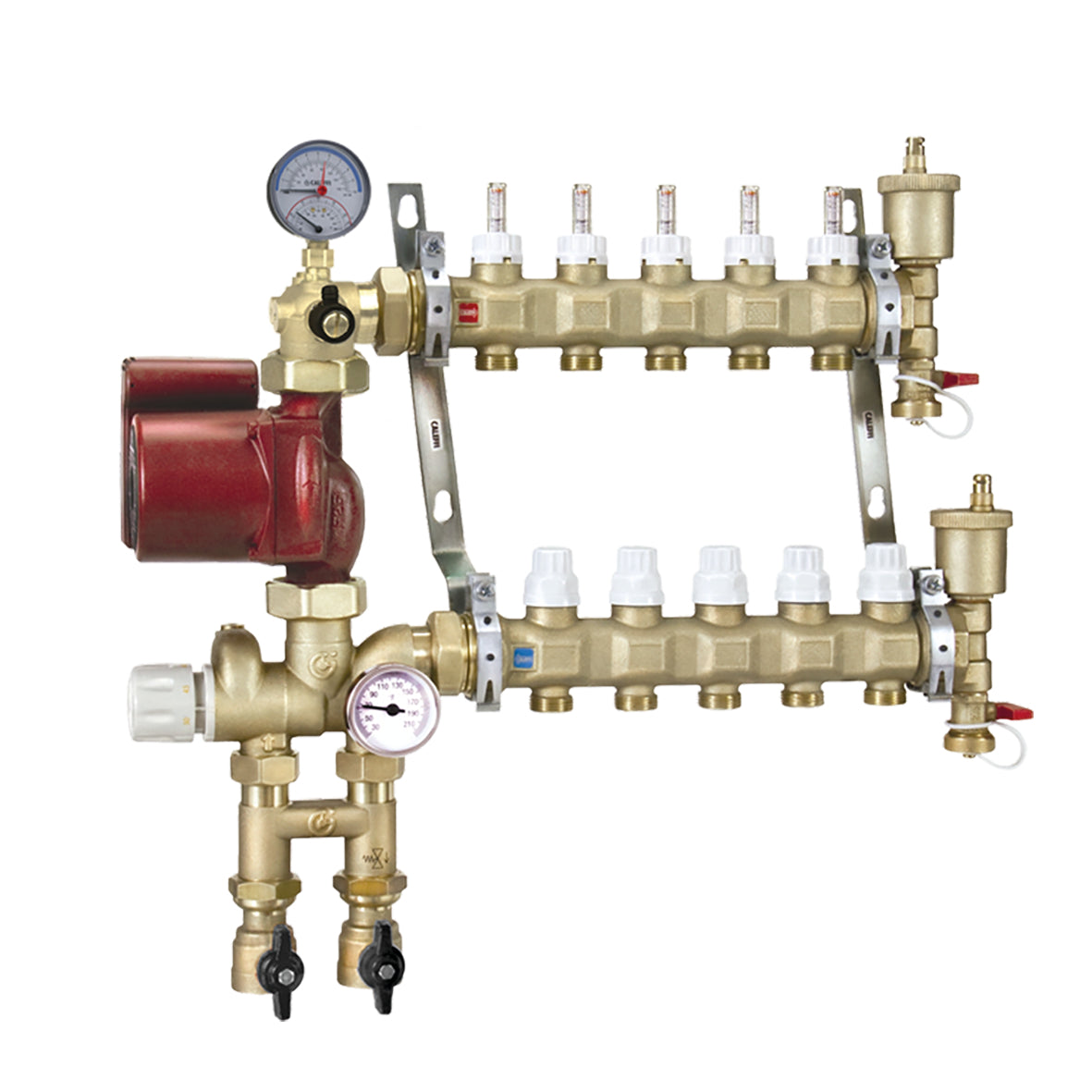

Caleffi - 1725L1A IN Low temperature manifold mixing station (with 3-speed pump) Complete with built-in sensor to keep flow temperature at constant set value. Pre-assembled thermostatic manifold mixing station consisting of a supply distribution manifold complete with built-in sight flow gauges and adjustable balancing valves. Return manifold with built-in shutoff valves is suitable for thermo-electric actuators. Includes Grundfos UPS 15—58 three-speed pump. 3/4" F NPT supply/return ball valves. Models with "...IN" suffix are built inverted (tubing connections going upward).
Additional Information
Connection 3/4" Outlet
Connection 3/4" M, 10 Outlets
Maximum Working Pressure 150 Psi
Adjustment Temperature Range 80–130 °C
Maximum Inlet Temperature 195 °F
Outlet Center Distance 2 "
Type Of Pump Ups 15-58
