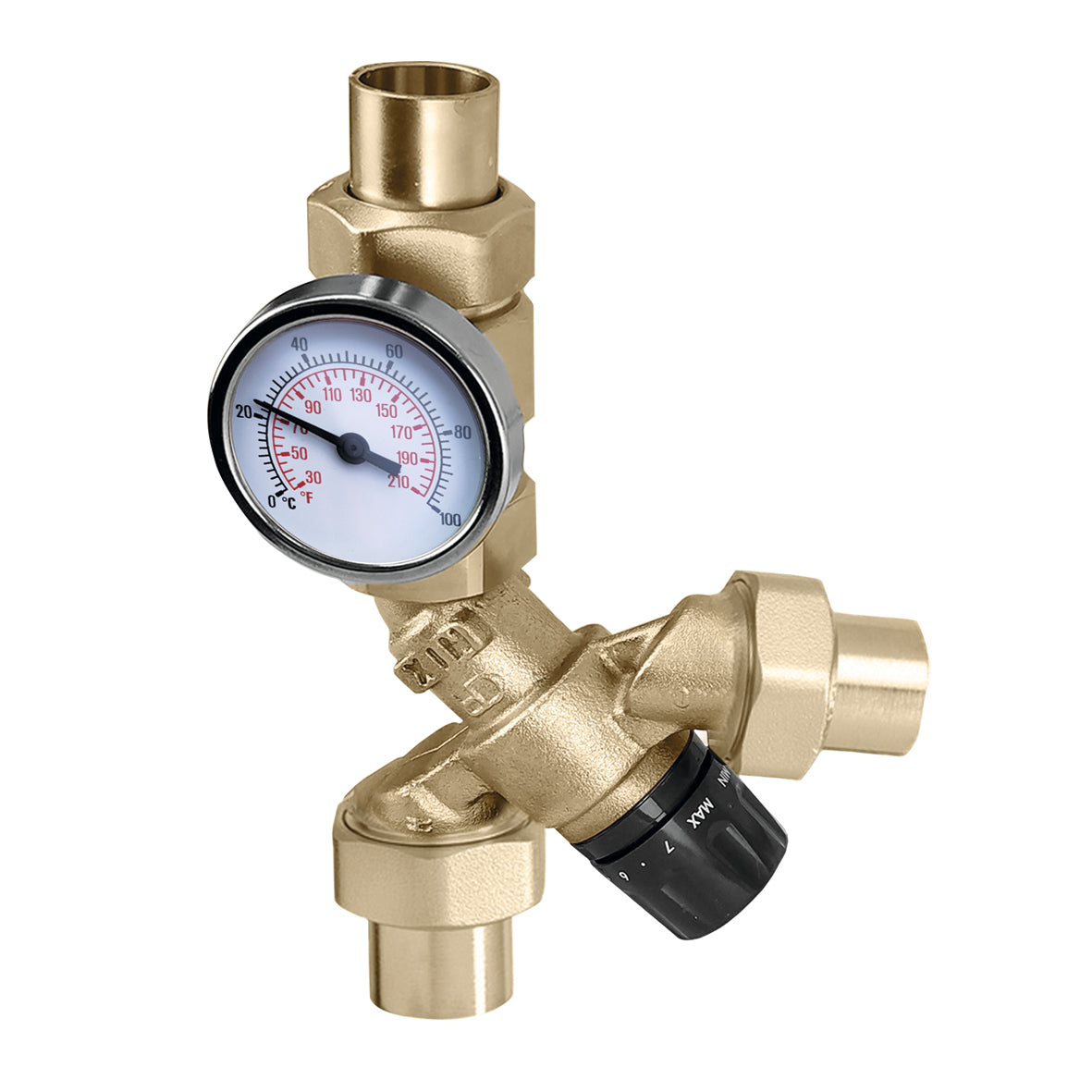

Caleffi - 520519AC Angled thermostatic mixing valve
Additional Information
Connection 3/4", Sweat Union
Maximum Working Pressure (Static) 150 Psi
Maximum Working Pressure (Dynamic) 75 Psi
Adjustment Temperature Range 95–150 °F
Maximum Inlet Temperature 195 °F
Temperature Gauge Scale 30–210 °F
Cv 20
Material Dzr Low Lead
CategoryMixing Valves
Height2.5"
Length6"
ManufacturerCaleffi
Mpn520519AC
SubcategoryThermostatic (point of distribution)
TypeAngleMix™
Weight0.6 LB
Width5"
Instruction Sheet
