category:
Mixing Valves
height:
3.5"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/NA10618_0.pdf
length:
9.75"
manufacturer:
Caleffi
mpn:
520610AC
subcategory:
Thermostatic (point of distribution)
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01266_NA_2.pdf
type:
AngleMix™
weight:
1.5 LB
width:
6.5"
Instruction Sheet Product Overview

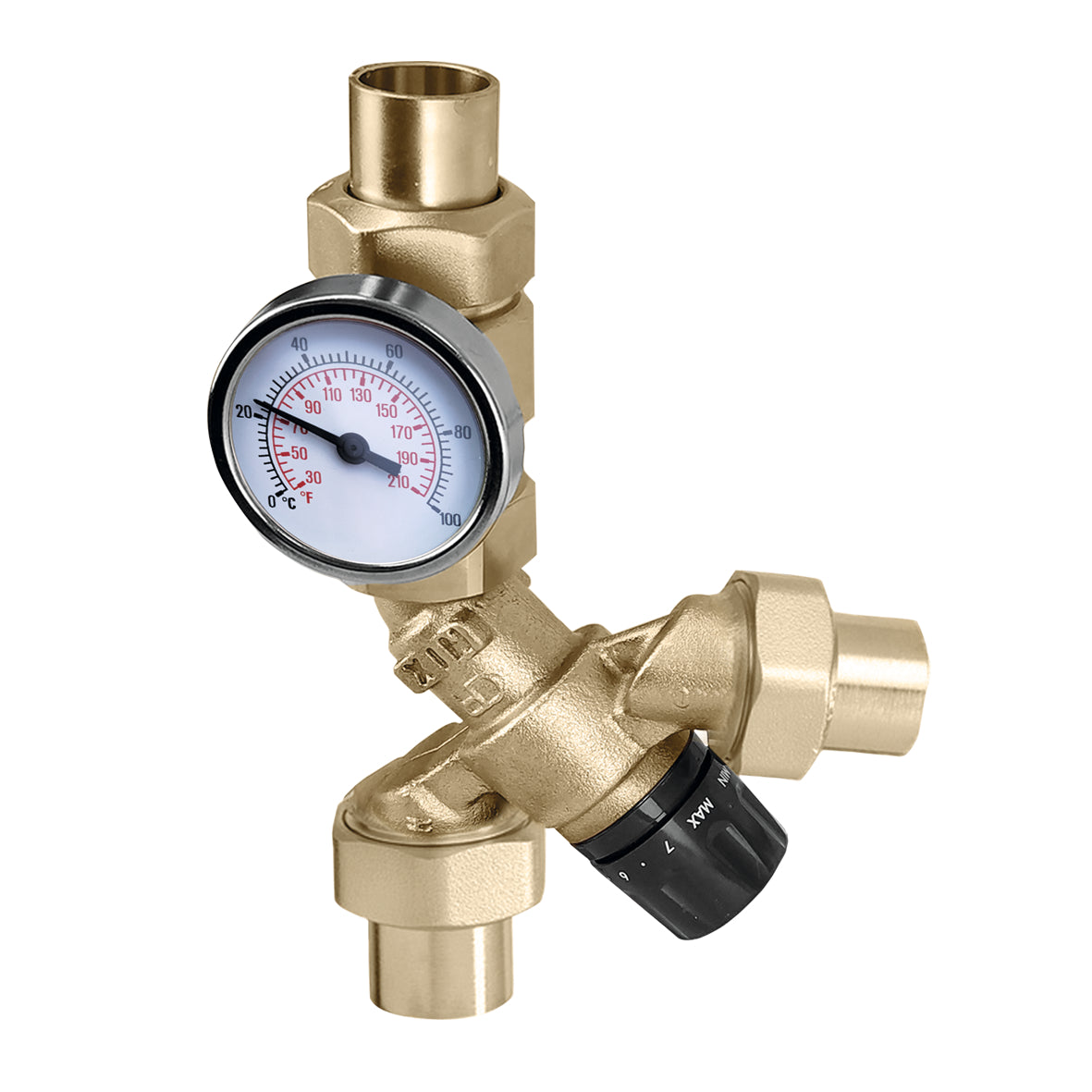

Angled thermostatic mixing valve
Additional Information
Connection 1" Mnpt, Union
Maximum Working Pressure (Static) 150 Psi
Maximum Working Pressure (Dynamic) 75 Psi
Adjustment Temperature Range 95–150 °F
Maximum Inlet Temperature 195 °F
Temperature Gauge Scale 30–210 °F
Cv 35
Material Dzr Low Lead Bra
