category:
Mixing Valves
height:
2"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/H0007288_NA_0.pdf
length:
4"
manufacturer:
Caleffi
mpn:
521201AP
subcategory:
Thermostatic (point of use)
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01364_NA.pdf
type:
SinkMixer™ (4-way)
weight:
0.2 LB
width:
3.5"
Instruction Sheet Product Description

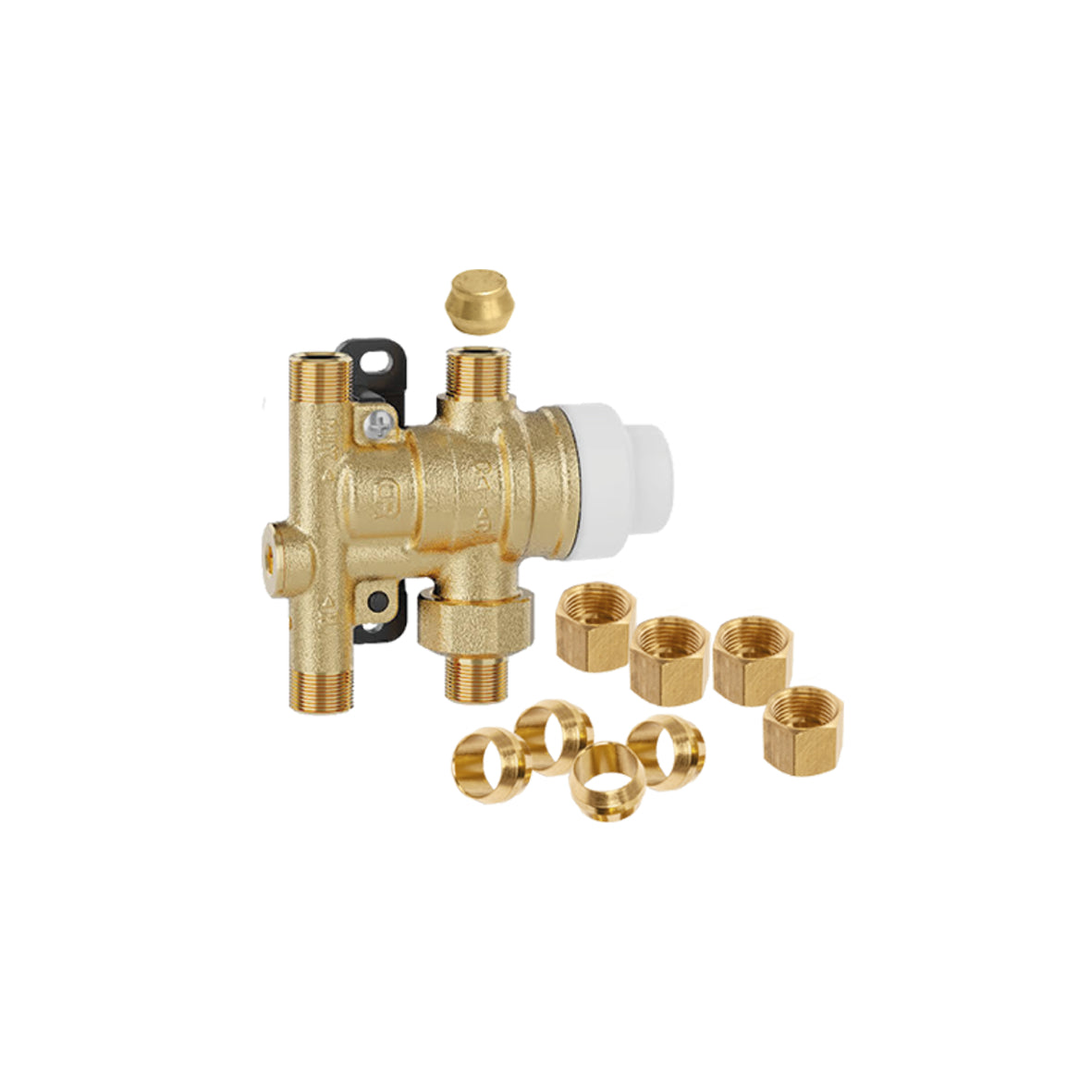

Caleffi - 521201AP 4-way scald protection point-of-use mixing valve Thermostatic mixing valve for under sink and under counter applications where the user must be protected from the danger of scalding caused by excessively hot water.
Additional Information
Cold Inlet Temperature Min 39°F; Max 85°F
Hot Inlet Temperature Min 120°F; Max 195°F
Connection 3/8", Compression Ends
Adjustment Temperature Range 95–120 °F
Flow Rate Working Range 035–23 Gpm
Cv 052
