category:
Air and Dirt Separators and Air Vents
height:
13"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/38456_NA_0.pdf
length:
20.5"
manufacturer:
Caleffi
mpn:
551080A
subcategory:
DISCAL® Air Separators
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01060_NA.pdf
type:
DISCAL® (ANSI Flange)
weight:
12.7 LB
width:
30.5"
Instruction Sheet Product Description

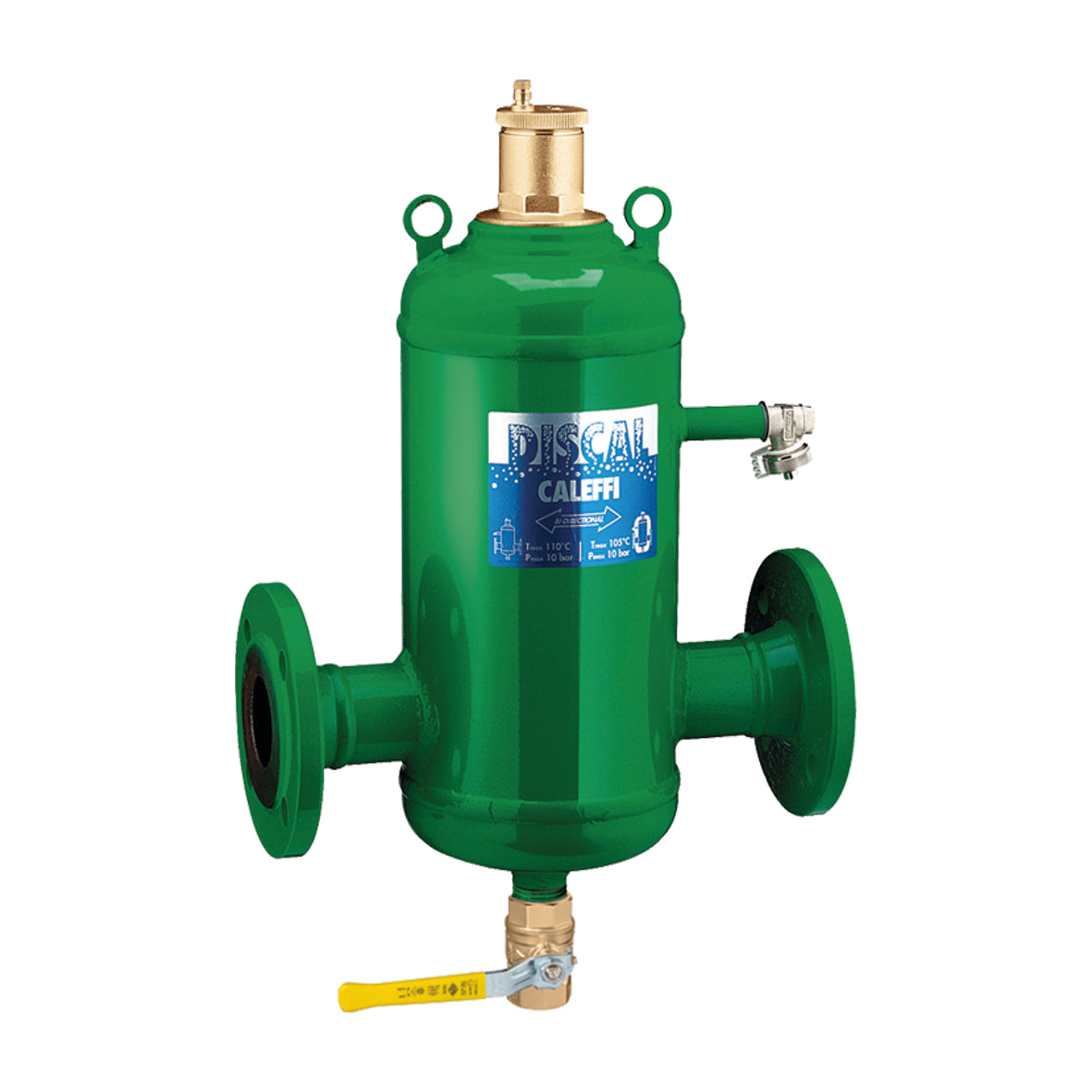

Caleffi - 551080A Air separator (2-6") Complete with male bottom drain valve (NA39753), side drain valve (538402FD). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" MNPT bottom drain connection. 1/2" MNPT side drain connection.
Additional Information
Connection 3" Ansi 150 Flange
Maximum Working Pressure 150 Psi
Medium Temperature Range 32–270 °F
Material Steel
