category:
Zone Valves, Controls and Coil Kits
height:
3.25"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/03556_NA.pdf
length:
5.5"
manufacturer:
Caleffi
mpn:
Z151000
subcategory:
Motorized Zone Valves
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01115_NA_0.pdf
type:
Actuators (normally closed)
weight:
0.2 LB
width:
3.25"
Instruction Sheet Product Description

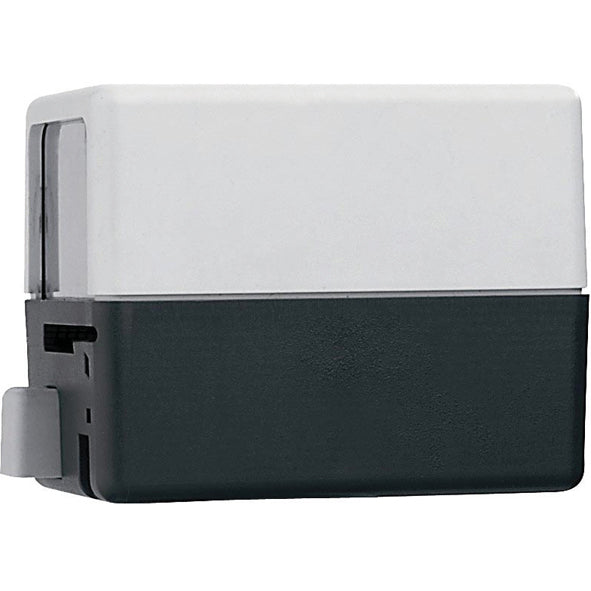

Caleffi - Z151000 Z1 actuator for motorized zone valves (closed) With auxiliary microswitch.UL873, cULus Listed CE. UL 1995 sec.18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator for motorized zone valves. Z1 Normally closed actuators fit on Z2 and Z3 valves. Normally open actuators fit on Z2 valves only. Easy pushbutton attachment 7/8" knockout for 1/2" conduit connector. Rating of auxiliary
Additional Information
Switch Contacts 24
Vac 00 A Min, 04 A Max (24 V) 120 And Z111900
Vac 025 A Min, 50 A Max (230 V)
Conduit Connector Size1/2"
Electric Supply 24 V (Ac)
Power Consumption 7 Va
