Caleffi

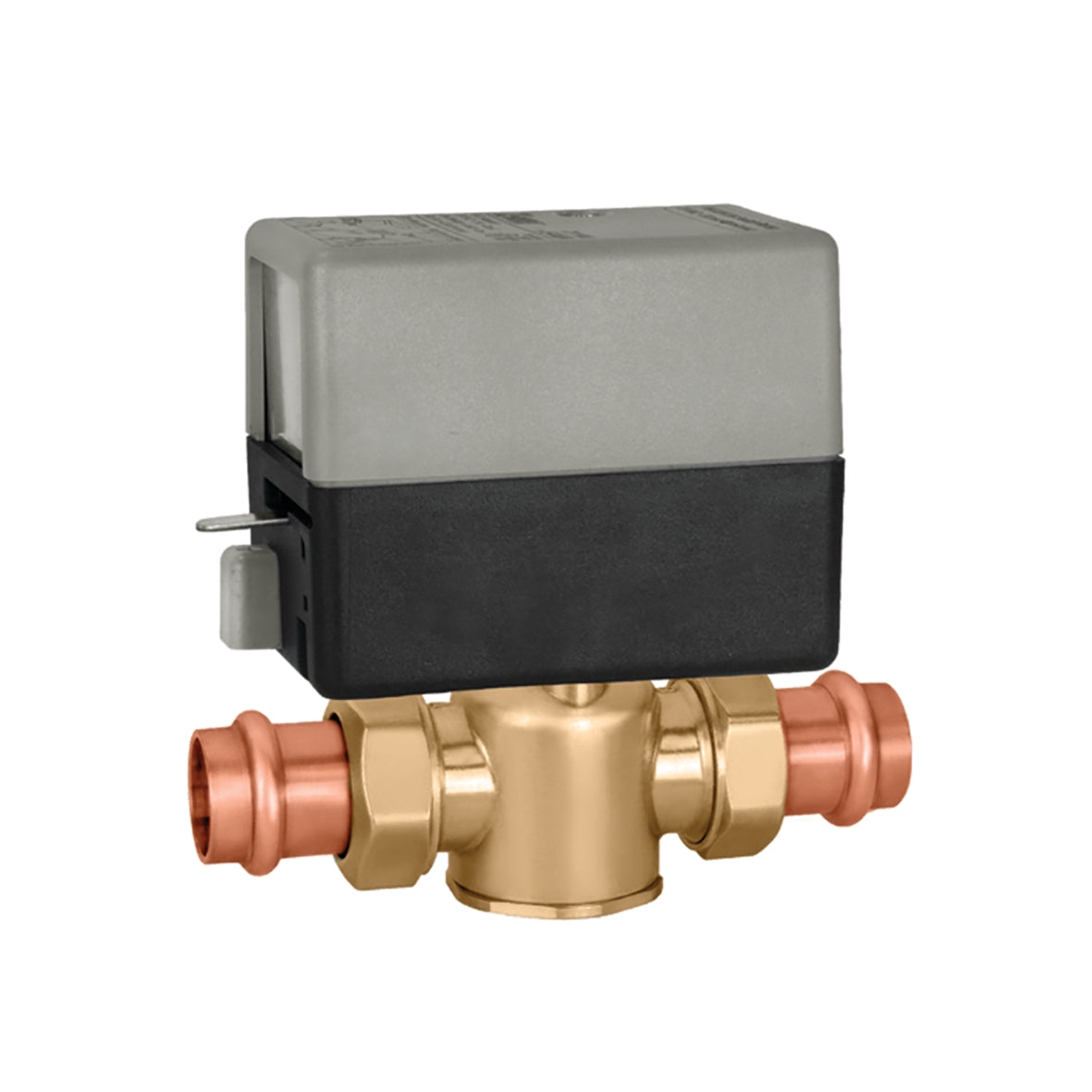

Caleffi Z54P Z-One™ 2-Way,NC TERMINAL Block, w/ MS,24V,1/2", Union Press,2.5Cv

Caleffi Z54P Z-One™ 2-Way,NC TERMINAL Block, w/ MS,24V,1/2", Union Press,2.5Cv

Dropship

SKU kpi094-Z54P

$157.33 USD
$157.33 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Zone Valves, Controls and Coil Kits
height: 4.5"
instruction_sheet: https://www.caleffi.com/sites/default/files/media/external-file/NA10073.pdf
length: 3.5"
manufacturer: Caleffi
mpn: Z54P
subcategory: Motorized Zone Valves
technical_brochure: https://www.caleffi.com/sites/default/files/media/external-file/01115_NA_0.pdf
type: Z-one™ 2-way
weight: 0.5 LB
width: 3.25"

Product Overview

2-way motorized zone valve (press) With auxiliary microswitch.UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Auxiliary micro-switch.

Additional Information

Overall Length 5-5/8" Spring Return
Connection 1/2", Press Union
Maximum Working Pressure 300 Psi
Medium Temperature Range 32–240 °F
Electric Supply 24 V (Ac)
Power Consumption 7 Va
Auxiliary Microswitch Contact Rating (24 V) 04 A
