category:
Zone Valves, Controls and Coil Kits
height:
3.5"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/NA10333.pdf
length:
12.5"
manufacturer:
Caleffi
mpn:
ZVR104
subcategory:
Z-one™ Zone Controls
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01286_NA_0.pdf
type:
Valve Zone Controls
weight:
1 LB
width:
12.25"
Instruction Sheet Product Overview

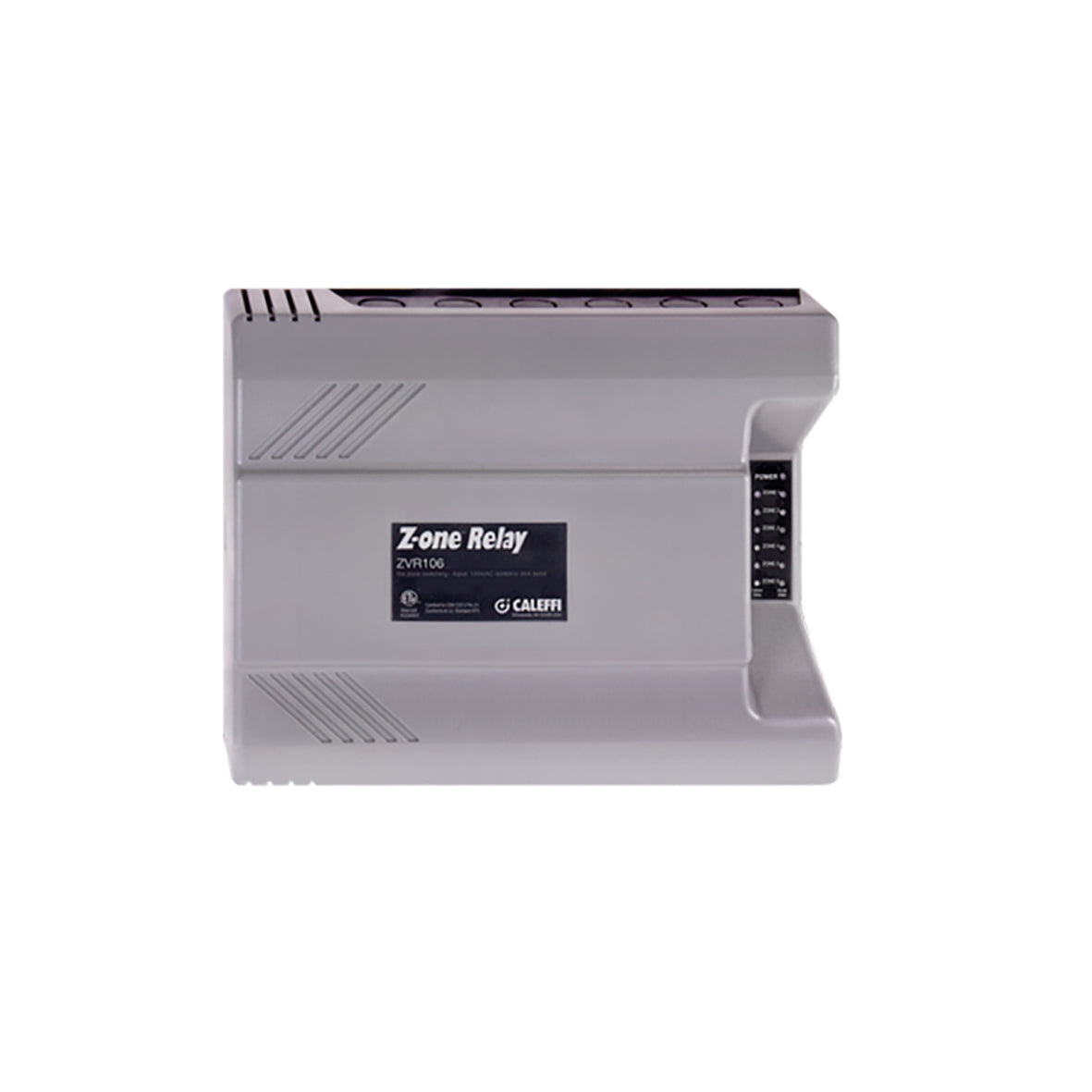

Relay (multi-zone) The ZVR series is a multi-zone valve relay and boiler operating control for multiple zone hydronic heating systems. The ZVR series interfaces with low voltage thermostats or any other low voltage controllers having a switching action. The ZVR series controls up to 3, 4, 5 or 6 zones, depending on model selected. In addition, a system circulator pump and secondary pump is turned on whenever any zone calls for heat. LED indicators provide functional status and easy system troubleshooting. The ZVR series is a perfect match with Caleffi’s Z-one™ motorized zone valves.
Additional Information
Resettable Fuse Automatic
Transformer Voltage 24 Vac
Maximum Transformer Load 40 Va (Zvr103/4), 80 Va (Zvr106)
Switch Rating 20A Max
Combined Electrical Switch Rating Pumps 120 Vac, 5A Each
Dry Contact Rating Aux, Xx, Zone1
E/S120 Vac, 2
