category:
MATERIAL HANDLING
manufacturer:
Nasco
mpn:
193-5411205
subcategory:
CHAIN CABLE ROPE & ACCESSORIES
Product Description

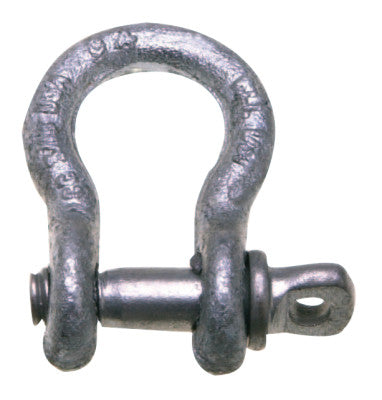

Nasco - 193-5411205
| Manufacturer Part Number | 5411205 |
|---|---|
| GTIN | 020418076305 |
| Family | Campbell 419-S Series Anchor Shackles |
| Manufacturer | Apex Tool Group |
| Hazmat | N |
| Testing and Approvals | Galvanized to ASTM A-153 Specifications; 419-S, 419-G Screw Pin meets the design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2 |
| Country of Origin | US |
| Features | Constructed of drop-forged carbon steel Self-colored finish Working load limit permanently shown on every shackle |
| Bail Size | 0.75 in |
| Eye Outer Size | 1.75 in |
| Finish | Self Colored |
| Inner Length [Nom] | 2 13/16 in |
| Inner Width [Nom] | 1 13/16 in |
| Locking Type | Threaded Pin |
| Material | Forged Carbon Steel |
| Opening Size [Nom] | 1.25 in |
| Pin Size [Nom] | 7/8 in |
| Type | Screw Pin Shackle |
| Working Load Limit | 9,500 lb |
| Wt. | 2.5 lb |
