category:
MATERIAL HANDLING
manufacturer:
Nasco
mpn:
193-5411405
subcategory:
CHAIN CABLE ROPE & ACCESSORIES
Product Description

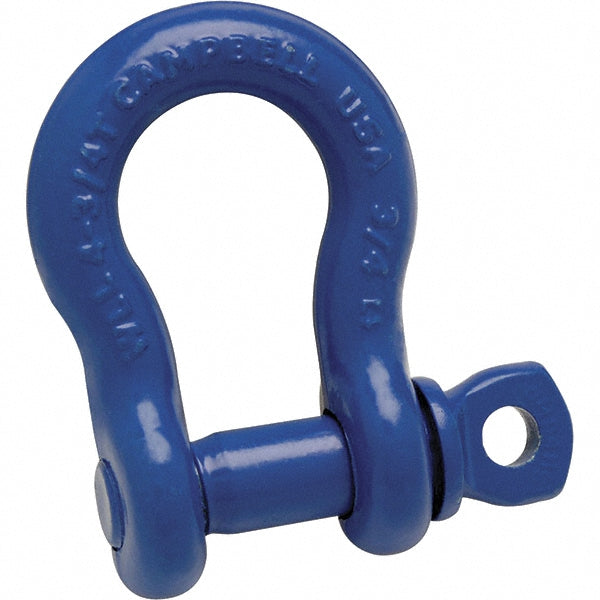

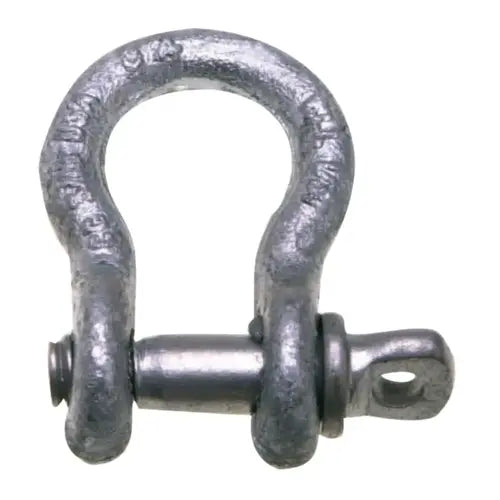

Nasco - 193-5411405
| Manufacturer Part Number | 5411405 |
|---|---|
| GTIN | 020418076329 |
| Family | Campbell 419-S Series Anchor Shackles |
| Manufacturer | Apex Tool Group |
| Hazmat | N |
| Testing and Approvals | Galvanized to ASTM A-153 Specifications; 419-S, 419-G Screw Pin meets the design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2 |
| Country of Origin | US |
| Features | Constructed of drop-forged carbon steel Self-colored finish Working load limit permanently shown on every shackle |
| Bail Size | 7/8 in |
| Eye Outer Size | 2 in |
| Finish | Self Colored |
| Inner Length [Nom] | 3 1/8 in |
| Inner Width [Nom] | 2 1/16 in |
| Locking Type | Threaded Pin |
| Material | Forged Carbon Steel |
| Opening Size [Nom] | 1 7/16 in |
| Pin Size [Nom] | 1 in |
| Type | Screw Pin Shackle |
| Working Load Limit | 13,000 lb |
| Wt. | 4 lb |
