category:
MATERIAL HANDLING
manufacturer:
Nasco
mpn:
193-5412035
subcategory:
CHAIN CABLE ROPE & ACCESSORIES
Product Description

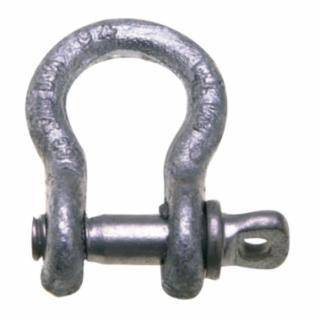

Nasco - 193-5412035
| Manufacturer Part Number | 5412035 |
|---|---|
| GTIN | 204180763988 |
| Family | Campbell 419 Series Anchor Shackles |
| Manufacturer | Apex Tool Group |
| Hazmat | N |
| Testing and Approvals | Galvanized to ASTM A-153 Specifications; 419-S, 419-G Screw Pin meets the design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2 |
| Country of Origin | US |
| Features | Constructed of drop-forged carbon steel Galvanized finish Working load limit permanently shown on every shackle |
| Bail Size | 1 1/4 in |
| Eye Outer Size | 3 in |
| Finish | Galvanized Zinc |
| Inner Length [Nom] | 4 1/2 in |
| Inner Width [Nom] | 3 1/4 in |
| Locking Type | Threaded Pin |
| Material | Forged Carbon Steel |
| Opening Size [Nom] | 2 in |
| Pin Size [Nom] | 1 3/8 in |
| Type | Screw Pin Shackle |
| Working Load Limit | 24,000 lb |
| Wt. | 10 lb |
