Product Description

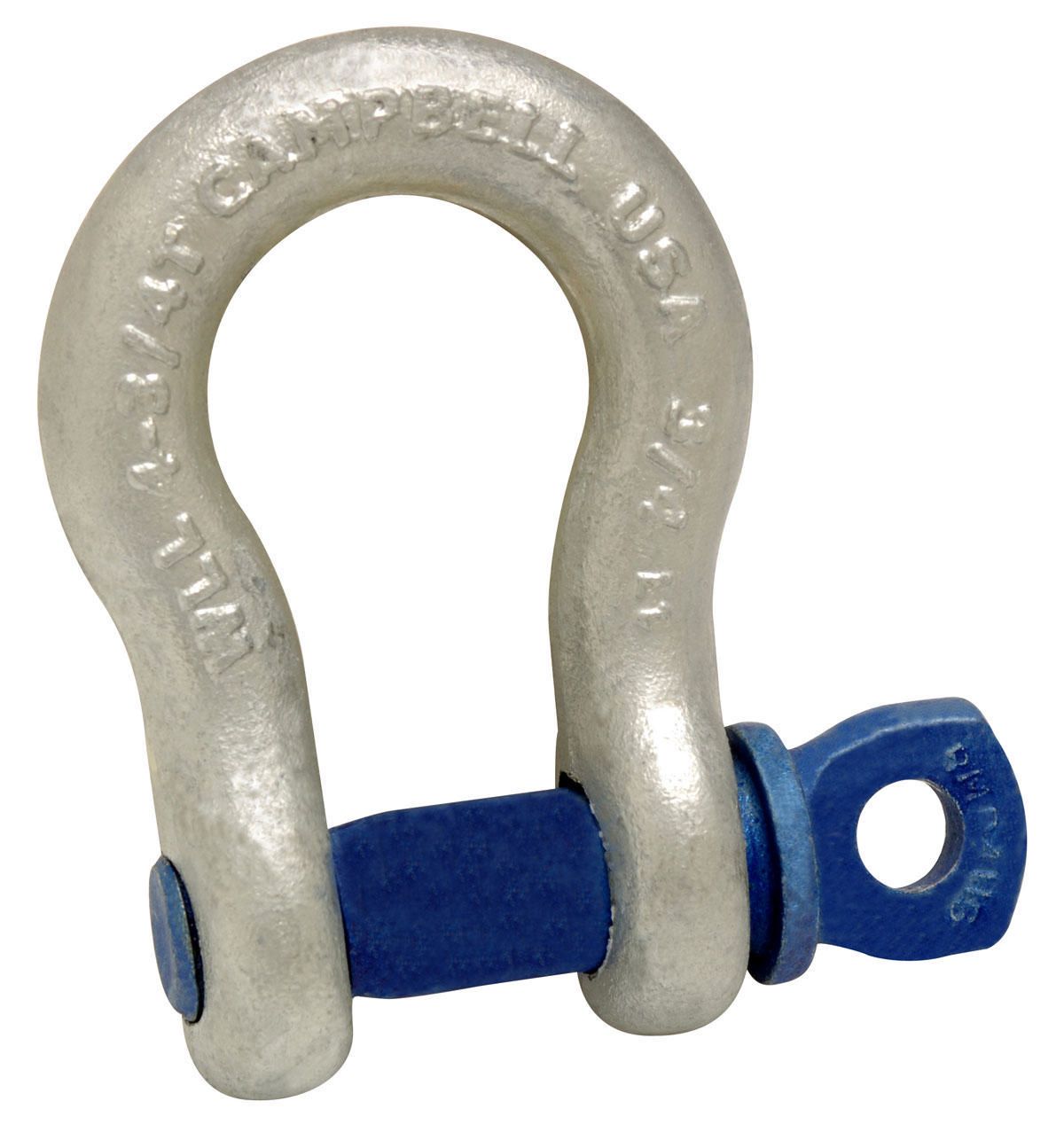

Features- Shackle Bodies Are Drop-Forged Carbon Steel
- Galvanized to Meet ASTM A-153 Specifications
- C-419-G Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2
- Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
- Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue
- 419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). The Shackles Can Be Proof Tested in Accordance with Section 26-1.4 Upon Request
- Certification Available Upon Request
- 6 to 1 Design Factor on Shackles 1/4" to 2"5 to 1 Design Factor on 2-1/2"
- Pins and Bolts Are Heat-Treated and Made of Alloy Steel
- DO NOT EXCEED THE WORKING LOAD LIMIT
- UPC - 020418076411
- Foreign Trade Code - 7326908688
- Set - No
- Packaging - Boxed
- Weight Each (lb) - 13.00 lb
- Weight Per 100 Pieces (lb) - 1300
- B Dimension - 1-1/2 in
- C Dimension - 5-1/4 in
- D Dimension - 2-1/4 in
- E Dimension - 3-1/2 in
- F Dimension - 3-1/4 in
- Working Load Limit Short Ton - 13-1/2 T
