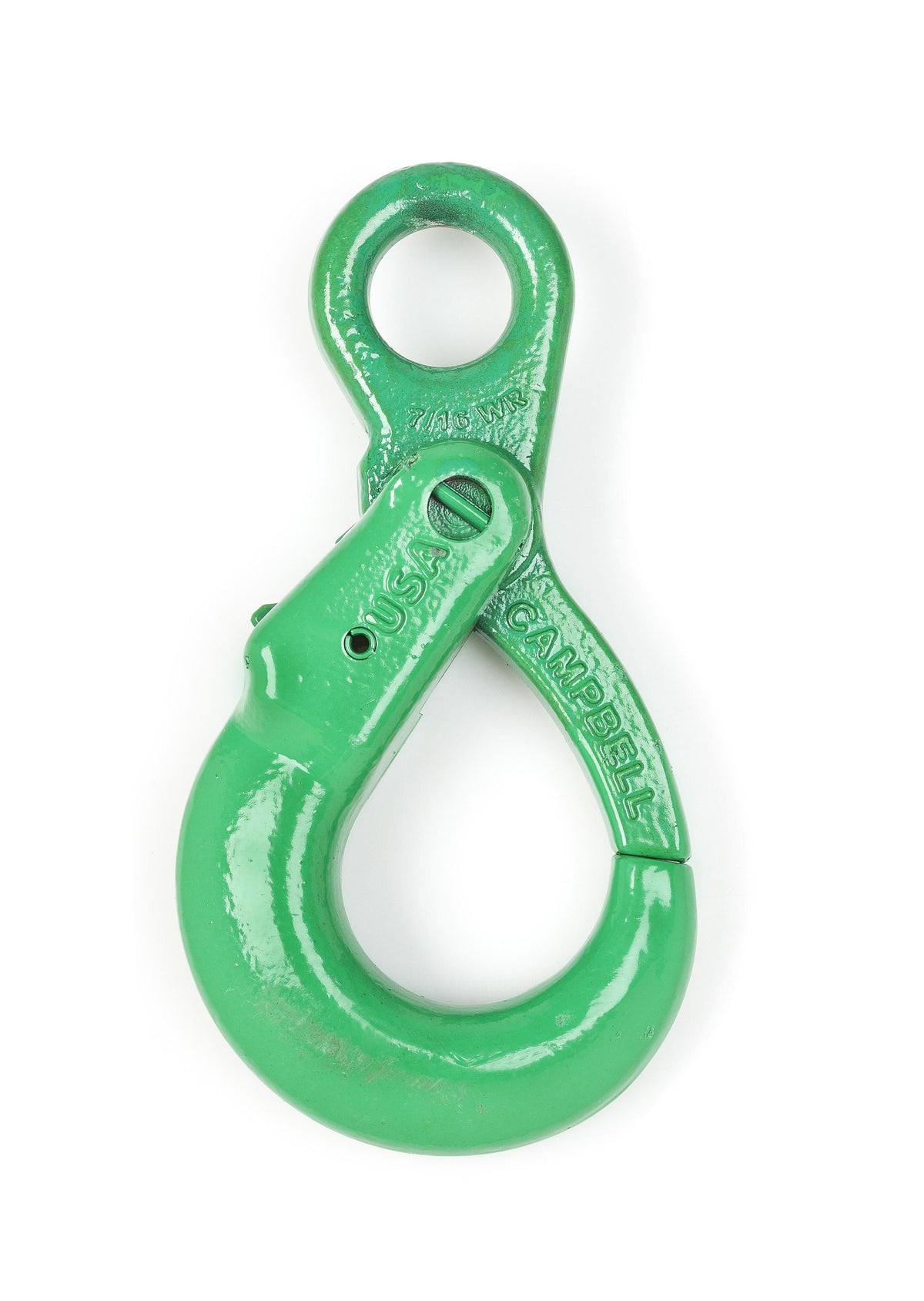

Campbell 5648695 3/8" Cam-Alloy® Eye Self Locking Hook, Grade 100, Painted Green

Campbell 5648695 3/8" Cam-Alloy® Eye Self Locking Hook, Grade 100, Painted Green

Dropship

SKU kpi263-5648695

GTIN : 020418193279

$371.94 USD
$371.94 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product Description

Features
  • Meet or Exceed All Requirements of ASME B30.9 and B30.10
  • Fatigue and 100% Proof Tested in Accordance with ASTM A952
  • Additionally Hallmarked with "USA" and Date Code
  • Meets the Intent of OSHA Regulation 1926.550(g)(4)(iv)(b)
  • Latch Closes Automatically Under Load
  • Eye Style is Designed to Accommodate Heavy Duty Wire Rope Thimbles
  • Stamped with Recommended Wire Rope Size
  • Working Load Limit Rating of 5 to 1 to Meet Design Requirements of Wire Rope Slings
  • Made in the USA
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Specifications
  • UPC - 020418193279
  • Foreign Trade Code - 7326908688
  • Set - No
  • Packaging - Boxed
  • Weight Each (lb) - 4.00 lb
  • A Dimension - 2.375
  • B Dimension - 1.375 in
  • C Dimension - 1.125 in
  • D Dimension - 1.250 in
  • E Dimension - 4.312 in
  • F Dimension - 1.875 in
  • R Dimension - 6.50 in
  • G Dimension - 0.578 in
  • H Dimension - 1.063 in
  • J Dimension - 1.50 in
  • For Wire Rope Size - 1/2 in
  • Working Load Limit 5 to 1 - 7000 lb
  • Working Load Limit 4 to 1 - 8800 lb
  • Chain Size - 3/8
