category:
MATERIAL HANDLING
manufacturer:
CAMPBELL®
mpn:
193-7100223
subcategory:
CHAIN CABLE ROPE & ACCESSORIES
Product Description

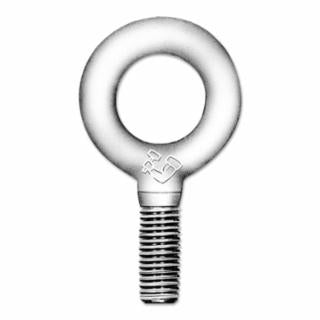

CAMPBELL® - 193-7100223
| Lead Time | 1-2 Weeks |
|---|---|
| Manufacturer Part Number | 7100223 |
| GTIN | 020418316661 |
| Family | Campbell Shoulder Pattern Eye Bolts |
| Manufacturer | Apex Tool Group |
| Testing and Approvals | Manufactured in accordance with the latest revision of ANSI/ASME B18.15 |
| Country of Origin | US |
| Features | Drop forged are quenched and tempered for optimum strength Furnished with Unified National Coarse (U.N.C.) threads Special threads and lengths |
| Eye Inner Diam [Nom] | 1 in |
| Eye Outer Size | 1 21/32 in |
| Load (Max) @ Angle | 1,400 lb @ 0 ; 650 lb @ 30 ; 350 lb @ 45 ; 325 lb @ 60 ; 275 lb @ 90 |
| Load Cap. [Nom] | 1400 lb |
| Material | Forged Carbon Steel |
| Overall Length [Nom] | 1 1/4 in |
| Quantity | 1 per box |
| Thread - TPI or Pitch | 3/8 in - 16 UNC |
| Type | Eye Bolt-Shouldered |
| Wt. | 0.13 lb |
