category:
Electric Motors
height:
6.87
length:
11.55
manufacturer:
Century
mpn:
292
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
6.8

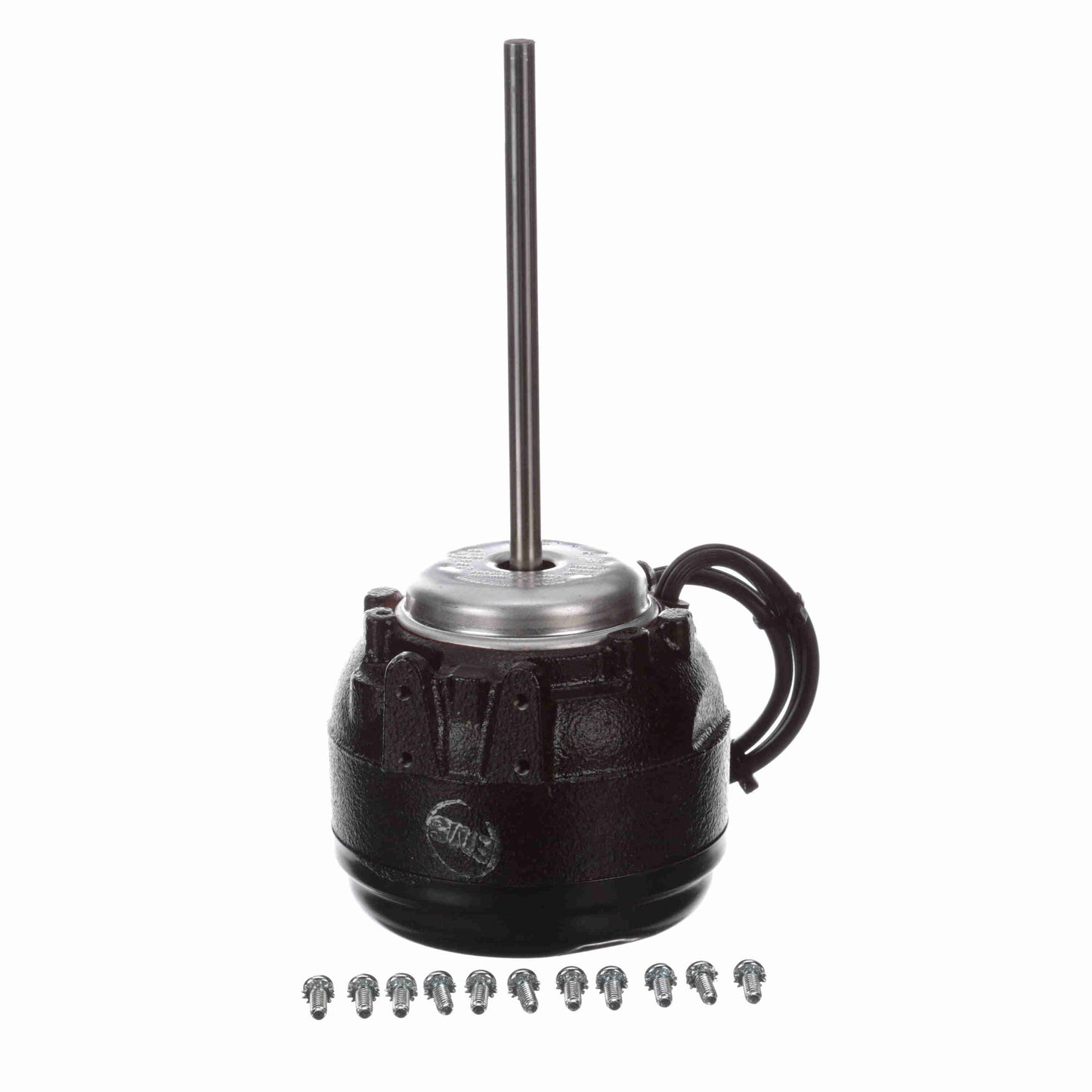

Product Overview
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 5/16" Diameter Shaft with Flat
- 12" Leads with Eyelets
- Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current0.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight5.00 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeFlat
Frame Length3.62 in
Shaft Diameter0.312 in
Shaft Extension5 in
HTC8501.10.6020
Output Watts15 W
CEN
Starting MethodAcross The Line
