category:
Electric Motors
height:
6.87
length:
7.36
manufacturer:
Century
mpn:
257
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
6.78

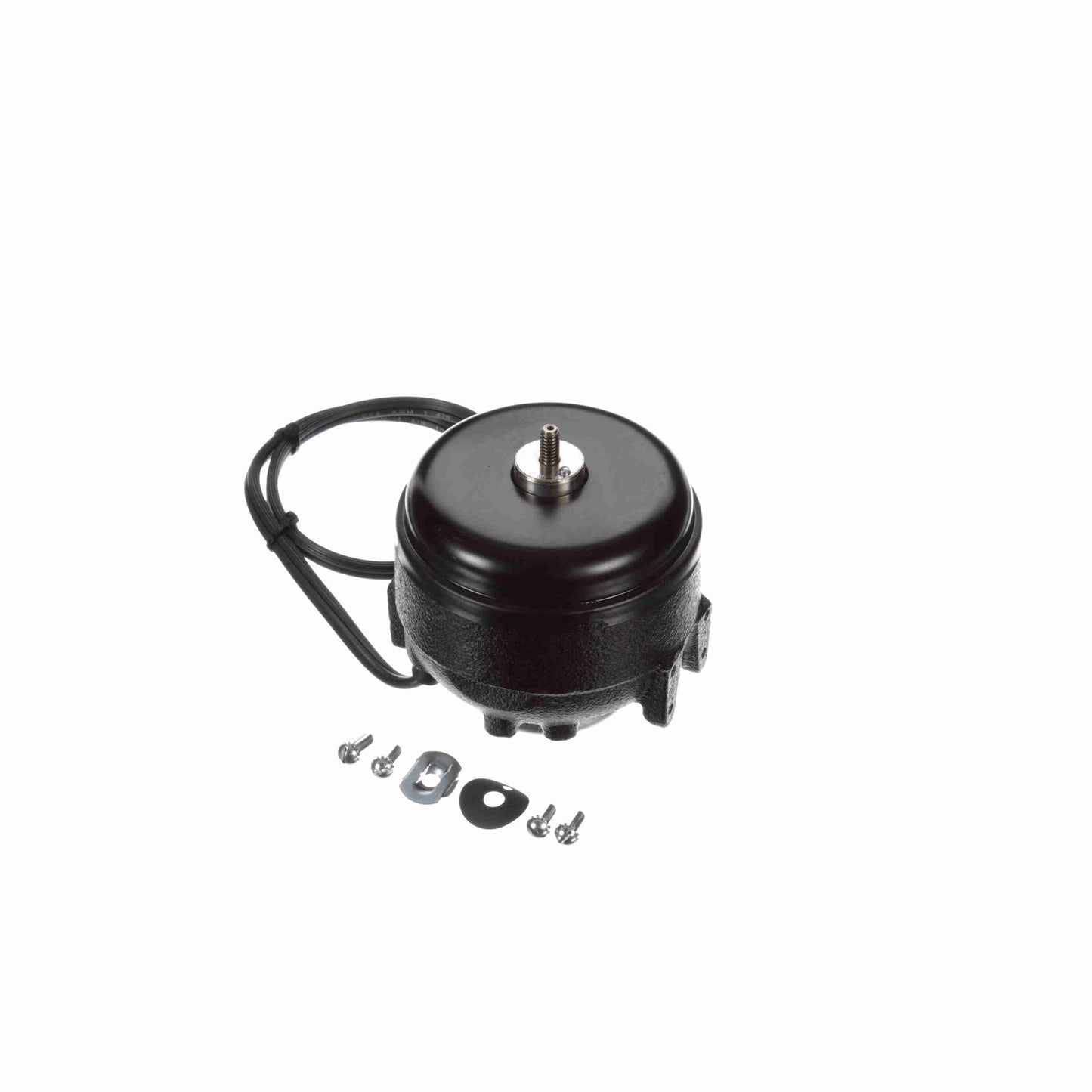

Product Overview
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 22" Leads
- Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current0.7 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight5.00 LB
Service Factor1
FrameUNIT BEARING
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Lead End
Mounting2 BOSS/OSE 3 HOLES
Drive End BearingUnit
Opp Drive End BearingUnit
Frame MaterialCast Iron
Shaft TypeThreaded
Frame Length3.84 in
Shaft Diameter1/4x20 in
Shaft Extension0.52 in
HTC8501.10.6020
Output Watts35 W
CEN
Starting MethodAcross The Line
