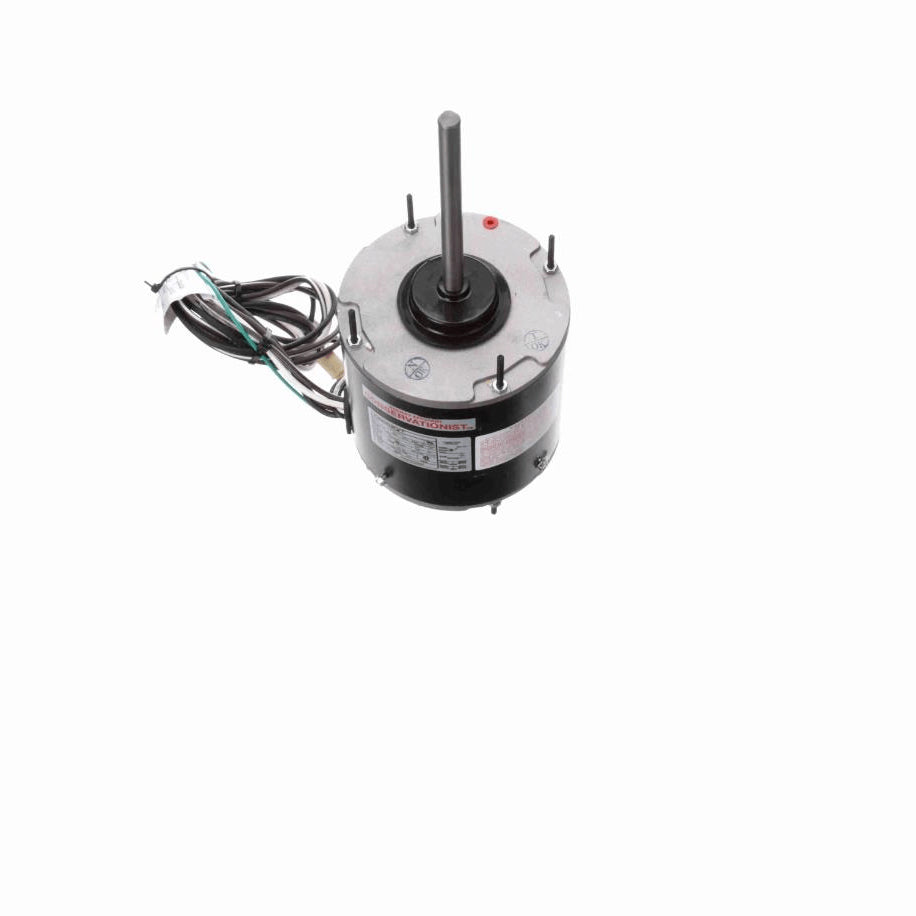

Century 4-in-1® Condenser Fan Motor, 1/2-1/5 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, ENCLOSED - ORM5459BF

Century 4-in-1® Condenser Fan Motor, 1/2-1/5 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, ENCLOSED - ORM5459BF

Back Order

Get it by Fri, May 23 - Wed, May 28

SKU kpi045-ORM5459BF

0
(0 rating)
$184.67 USD
$184.67 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
height: 6.81
length: 15.55
manufacturer: Century
mpn: ORM5459BF
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 17
width: 6.45

Product Description

Century - ORM5459BF

  • 4-in-1 HeatMaster - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed1075 rpm
Current3.6 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight17.00 LB
Country Of originMexico
Output HP1/2-1/5 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.75 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
