availability:
In stock
category:
Electric Motors
country_of_origin:
TW
custom_label_2:
in-stock
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
ORM5488
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
16
width:
6.41
Product Description

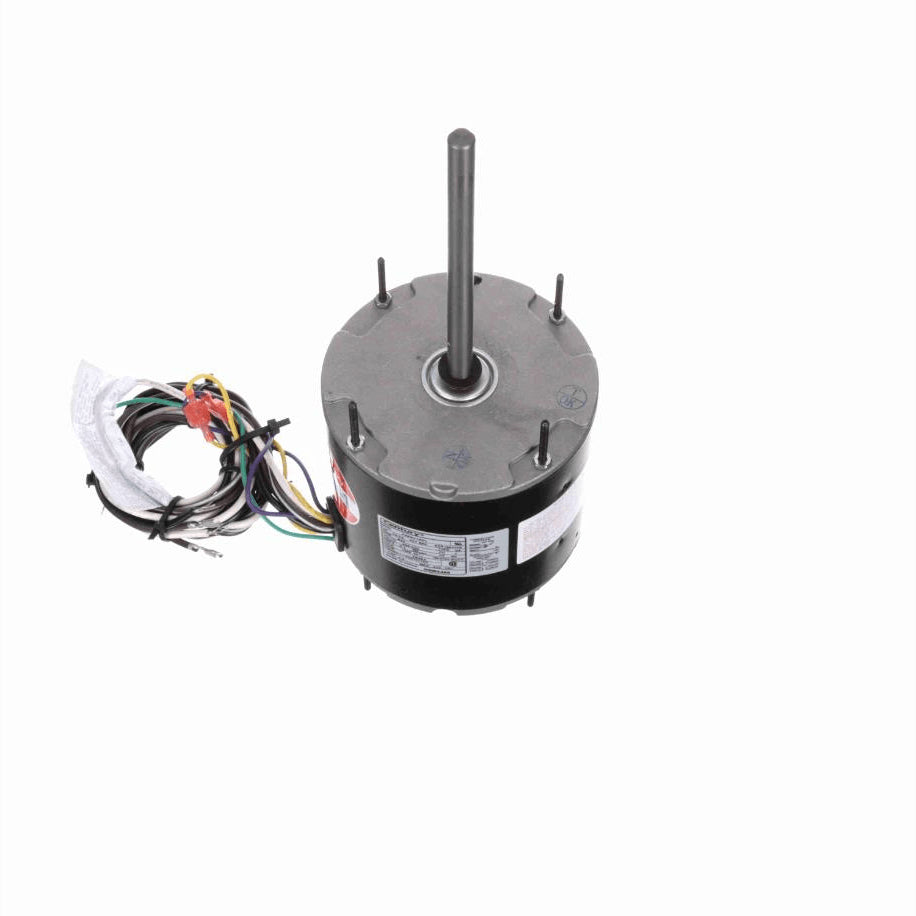

Century - ORM5488
- 4-in-1 - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current2.1 A
Number of Speeds1
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight16.00 LB
Country Of originIndia
Output HP1/3-1/8 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.25 in
Shaft Diameter0.500 in
Shaft Extension6.7 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
