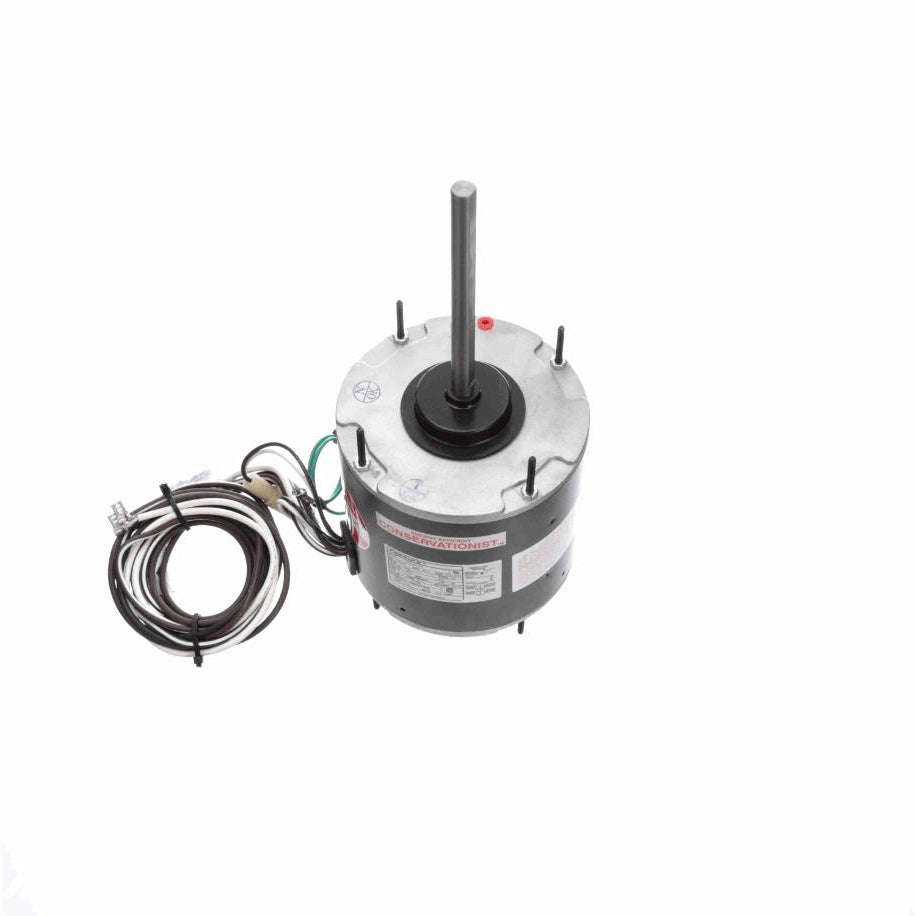

Century 4-in-1® Condenser Fan Motor, 1/3-1/8 HP, 1 Ph, 60 Hz, 460 V, 825 RPM, 1 Speed, 48 Frame, ENCLOSED - ORM4688BU

Century 4-in-1® Condenser Fan Motor, 1/3-1/8 HP, 1 Ph, 60 Hz, 460 V, 825 RPM, 1 Speed, 48 Frame, ENCLOSED - ORM4688BU

Back Order

Get it by Tue, Jun 03 - Sun, Jun 08

SKU kpi045-ORM4688BU

0
(0 rating)
$268.68 USD
$268.68 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric Motors
height: 6.8
length: 15.5
manufacturer: Century
mpn: ORM4688BU
subcategory: AC Motors - NEMA
type: HVAC - R Motors
weight: 16.1
width: 6.5

Product Description

Century - ORM4688BU

  • 4-in-1 HeatMaster Ultra - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 80°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, 4.33BC on Opposite Shaft End End-Frame, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic
Speed825 rpm
Current1.0 A
Number of Speeds1
Ambient Temperature80 °C
ULRecognized
Insulation ClassF
CSAY
Weight16.10 LB
Country Of originChina
Output HP1/3-1/8 Hp
Output KW0.25 kW
Service Factor1
Frame48
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.63 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
CEN
Starting MethodAcross The Line
