category:
Electric Motors
height:
6.81
length:
13.78
manufacturer:
Century
mpn:
ORM5484F
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12
width:
6.42
Product Overview

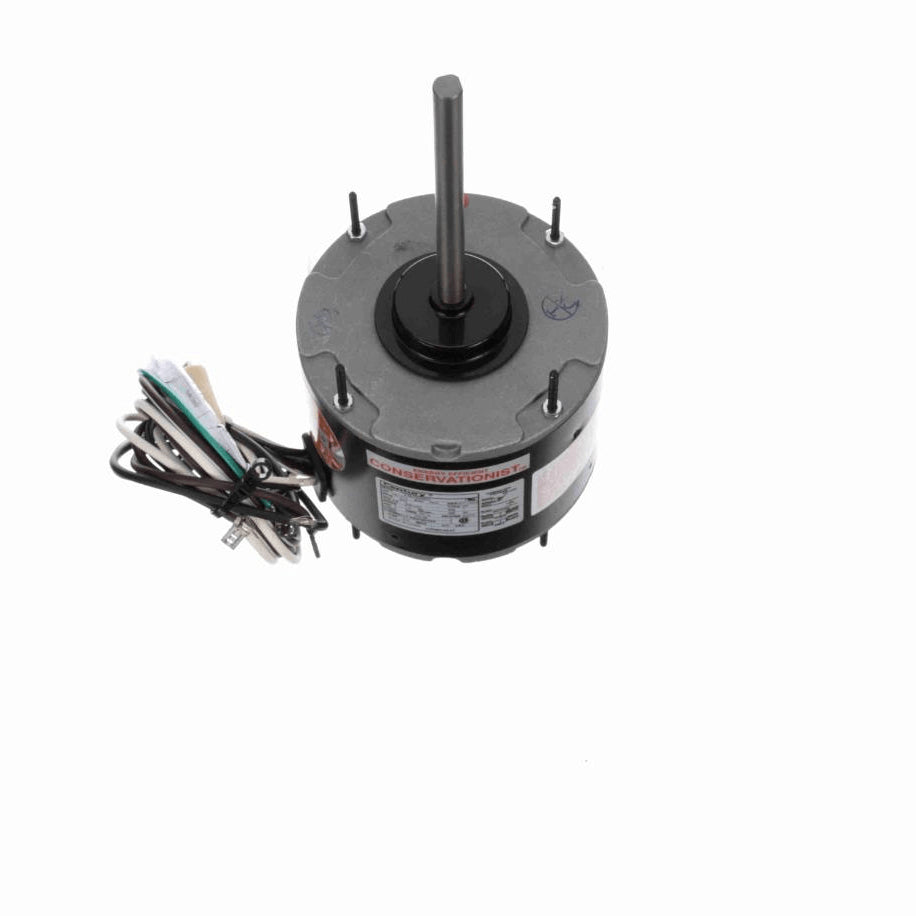

- 4-in-1 HeatMaster - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed825 rpm
Current1.0 A
Number of Speeds1
Ambient Temperature70 °C
ULRecognized
Insulation ClassF
CSAY
Weight12.00 LB
Country Of originChina
Output HP1/8-1/15 Hp
Output KW0.10 kW
Service Factor1
Frame48
EnclosureTotally Enclosed
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles8
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.62 in
Shaft Diameter0.500 in
Shaft Extension6.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
